NSN 4730-00-203-4747
Part Details | TUBE FITTING BRAZING FERRULE
4730-00-203-4747 A flanged cylindrical metallic item designed to be slipped over tubing and brazed in place. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled the joint seals at the seat in a manner similar to a seat type union.
Alternate Parts: 259341, 259341, 259341, 4730-00-203-4747, 00-203-4747, 4730002034747, 002034747
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-203-4747 | 18024 ( FERRULE, BRAZING, TUBE FITTING ) |

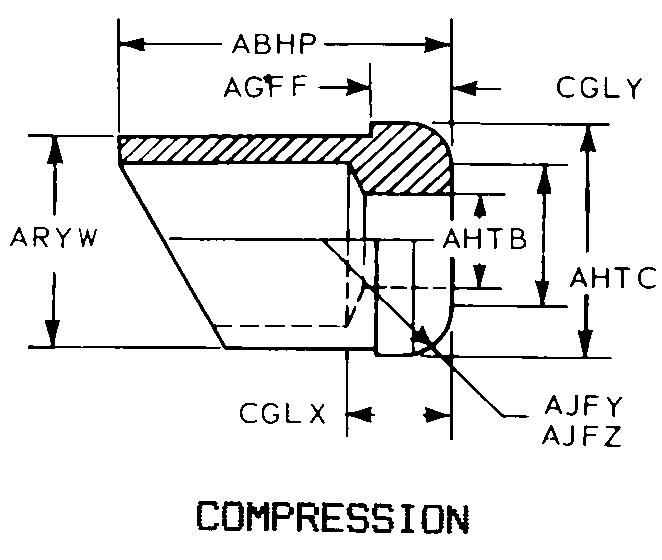

REFERENCE DRAWINGS & PICTURES
COMPRESSION
Cross Reference | NSN 4730-00-203-4747
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 259341 | 04861 | COOPER INDUSTRIES INCCOOPER PETROLEUM EQUIPMENT DIV |
| 259341 | 11449 | TURBO POWER & MARINE SYSTEM INCSUB OF UNITED TECHNOLOGIES CORP |
| 259341 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 4730-00-203-4747
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316F |
| METALLIC HARDNESS RATING | 20.0 MINIMUM ROCKWELL C AND 28.0 MAXIMUM ROCKWELL C |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES NOMINAL |
| STYLE DESIGNATOR | COMPRESSION |
| OVERALL LENGTH | 0.9604 INCHES NOMINAL |
| FLANGE WIDTH | 0.285 INCHES NOMINAL |
| FLANGE INSIDE DIAMETER | 0.438 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.6805 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 37.0 |
| SLEEVE OUTSIDE DIAMETER | 0.5605 INCHES NOMINAL |
| DISTANCE FROM FLANGED END TO TUBING CLEARANCE HOLE | 0.345 INCHES NOMINAL |
| FLANGE FACE DIAMETER | 0.6562 INCHES NOMINAL |
