NSN 4730-00-203-2965
Part Details | TUBE COUPLING INVERTED NUT
4730-00-203-2965 An externally threaded fastening device which has an internal or external seat, designed to mate with the seat of an internally threaded tube fitting for the purpose of securing the tube to the fitting to form a leakproof connection.
Alternate Parts: 7F5222, 4730-00-203-2965, 00-203-2965, 4730002032965, 002032965
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-203-2965 | 03857 ( INVERTED NUT, TUBE COUPLING ) |

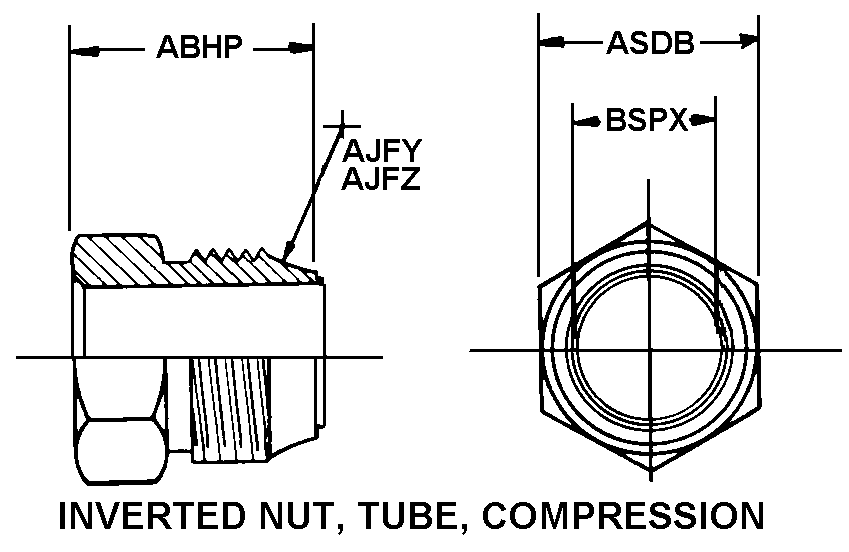

REFERENCE DRAWINGS & PICTURES
INVERTED NUT, TUBE, COMPRESSION
Cross Reference | NSN 4730-00-203-2965
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7F5222 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
Technical Data | NSN 4730-00-203-2965
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1213 |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED STD 66, COMP 1113 FED STD SINGLE MATERIAL RESPONSE |
| STRENGTH RATING | 57000.0 POUNDS PER SQUARE INCH MINIMUM YIELD |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| MATERIAL HARDNESS RATING | 376.4 ROCKWELL B NOMINAL |
| FABRICATION METHOD | BAR STOCK, MACHINED |
| STYLE DESIGNATOR | INVERTED NUT, TUBE, COMPRESSION |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 0.438 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 35.00 |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| THREAD SIZE | 5/8-18 |
| SCREW THREAD SERIES DESIGNATOR | UNS |
| THREAD PITCH DIAMETERS | +0.5859 TO +0.5899 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
