NSN 4730-00-203-0239
Part Details | PACKING NUT
4730-00-203-0239 An item having internal and/or external machine thread(s) (threads other than pipe or hose series), specifically designed to retain, by means or groove(s), shoulder(s), and the like, packing and/or a packing gland within a stuffing box. See also BUSHING, MACHINE THREAD; INVERTED NUT, TUBE COUPLING; and NUT, TUBE COUPLING. Excludes PACKING NUT, STUFFING TUBE; and use with electrical cable, and LOCKNUT, PIPE.
Alternate Parts: 911548, 9115-48, 4730-00-203-0239, 00-203-0239, 4730002030239, 002030239
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-203-0239 | 18028 ( PACKING NUT ) |
REFERENCE DRAWINGS & PICTURES

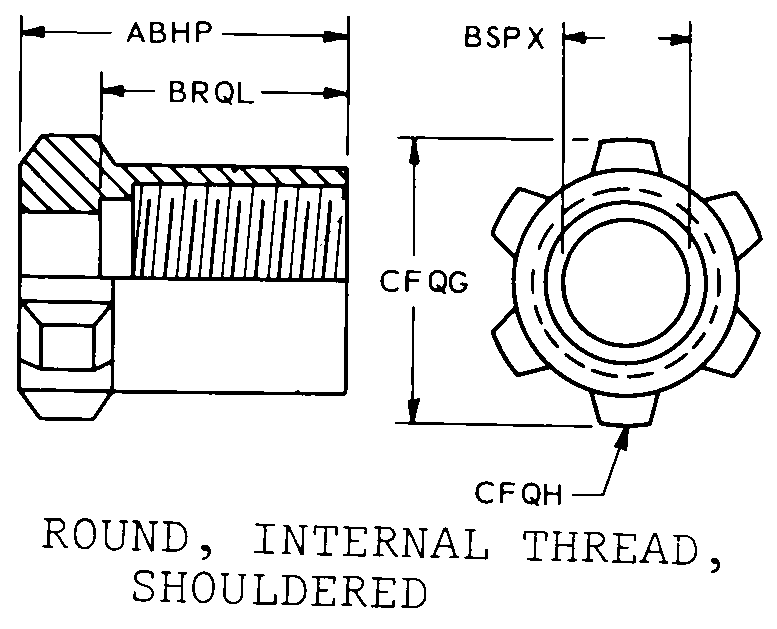

ROUND, INTERNAL THREAD, SHOULDERED
Cross Reference | NSN 4730-00-203-0239
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9115-48 | 13002 | GOODRICH CORPORATIONDBA GOODRICH LANDING GEAR DIVISION |
Technical Data | NSN 4730-00-203-0239
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL HARDNESS RATING | 34.0 ROCKWELL C MINIMUM AND 39.0 ROCKWELL C MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| STYLE DESIGNATOR | ROUND, INTERNAL THREAD, SHOULDERED |
| THREAD SIZE | 5.375-16 |
| THREAD LENGTH | 0.910 INCHES NOMINAL |
| SCREW THREAD LOCATION | INTERNAL |
| THREAD DIRECTION | RIGHT-HAND |
| OVERALL LENGTH | 1.180 INCHES NOMINAL |
| LENGTH TO SHOULDER | 1.000 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 4.260 INCHES MINIMUM AND 4.270 INCHES MAXIMUM |
| MAJOR UNTHREADED OUTSIDE DIAMETER | 5.880 INCHES MINIMUM AND 5.885 INCHES MAXIMUM |
| HOLE OR SLOT QUANTITY | 6 |
| THREAD CLASS | A3B$$A3B |
