NSN 4720-00-735-9221
Part Details | METALLIC HOSE ASSEMBLY
4720-00-735-9221 A length of metallic hose with fittings on one or both ends. For items without fittings, see HOSE, METALLIC. Excludes CONDUIT, ELECTRICAL; CONDUIT ASSEMBLY, ELECTRICAL; CASING, FLEXIBLE CONTROL; and CASING, FLEXIBLE SHAFT ASSEMBLY.
Alternate Parts: 105861, 82994210, 82994-210, MILH27301, MIL-H-27301, 59C6671210, 59C6671-2-10, 4720-00-735-9221, 00-735-9221, 4720007359221, 007359221
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-735-9221 | 17972 ( HOSE ASSEMBLY, METALLIC ) |
REFERENCE DRAWINGS & PICTURES
ROUND

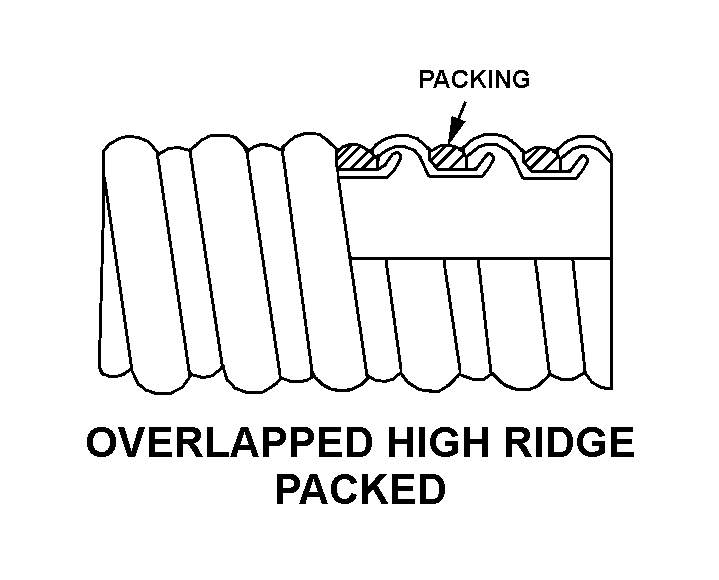

OVERLAPPED HIGH RIDGE PACKED
Cross Reference | NSN 4720-00-735-9221
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 105861 | 70510 | HYSPAN PRECISION PRODUCTS, INC.DBA HYSPAN |
| 82994-210 | 70510 | HYSPAN PRECISION PRODUCTS, INC.DBA HYSPAN |
| MIL-H-27301 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 59C6671-2-10 | 98750 | SAN ANTONIO AIR LOGISTICS CENTER |
Technical Data | NSN 4720-00-735-9221
| Characteristic | Specifications |
|---|---|
| HYDROSTATIC TEST PRESSURE | 500.0 POUNDS PER SQUARE INCH |
| MEASURING METHOD AND LENGTH | RL120.000 INCHES NOMINAL |
| MINIMUM INSIDE BENDING RADIUS | 40.000 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | ROUND |
| INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.875 INCHES NOMINAL |
| INNER CONVEYING TUBE STYLE | OVERLAPPED HIGH RIDGE PACKED |
| FEATURES PROVIDED | IDENTICAL ENDS |
| SPECIFICATION/STANDARD DATA | 81349-MIL-H-27301 GOVERNMENT SPECIFICATION |
