NSN 4720-00-709-0475
Part Details | PREFORMED HOSE
4720-00-709-0475 A length of nonmetallic hose, molded to a predetermined shape and size.
Alternate Parts: 10A7851, 4720-00-709-0475, 00-709-0475, 4720007090475, 007090475
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-709-0475 | 17271 ( HOSE, PREFORMED ) |
REFERENCE DRAWINGS & PICTURES

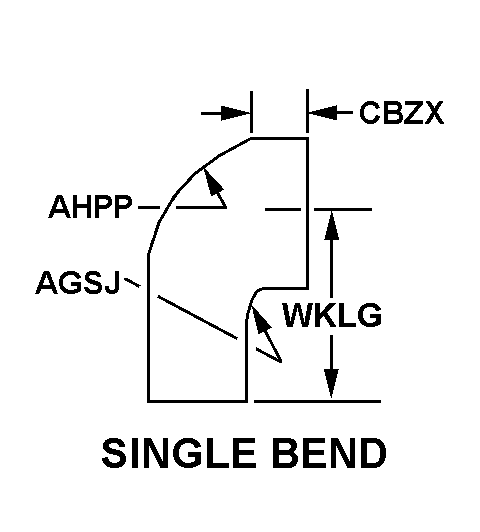

SINGLE BEND
Cross Reference | NSN 4720-00-709-0475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10A7851 | 81240 | WHITE FARM EQUIPMENT COSUB OF TIC INVESTMENT INC |
Technical Data | NSN 4720-00-709-0475
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE BEND |
| FEATURES PROVIDED | ENLARGED ENDS |
| WALL THICKNESS | 0.188 INCHES NOMINAL |
| INSIDE DIAMETER | 1.750 INCHES NOMINAL |
| WORKING LENGTH | 3.375 INCHES NOMINAL |
| BEND RADIUS | 0.750 INCHES NOMINAL |
| OUTER RADIUS | 2.875 INCHES NOMINAL |
| FIRST ARM LENGTH | 0.813 INCHES NOMINAL |
