NSN 4720-00-692-8826
Part Details | METALLIC HOSE
4720-00-692-8826 A flexible, tubular item having a metallic tube inner conveying surface. It may have one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, solids, or sound waves. For items with fittings on one or both ends, see HOSE ASSEMBLY, METALLIC. For items used to protect electrical wires or cables, see CONDUIT, RACEWAY (AS MODIFIED).
Alternate Parts: 486795, 7700297, 4720-00-692-8826, 00-692-8826, 4720006928826, 006928826
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-692-8826 | 08412 ( HOSE, METALLIC ) |
REFERENCE DRAWINGS & PICTURES
ROUND

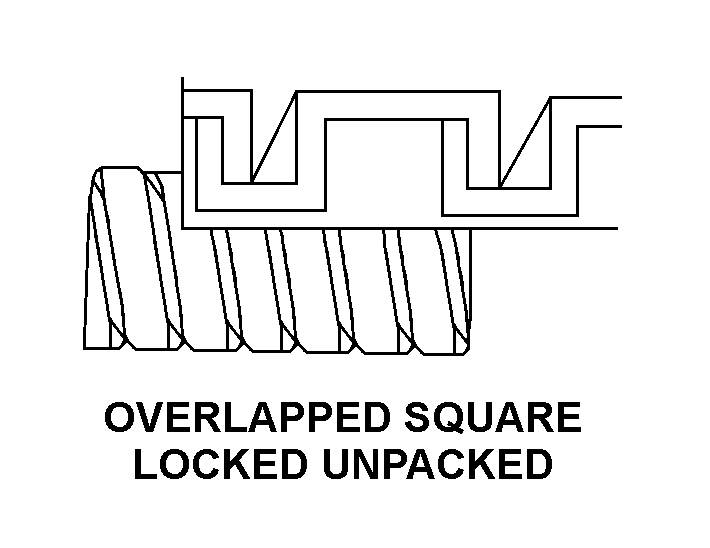

OVERLAPPED SQUARE LOCKED UNPACKED
Cross Reference | NSN 4720-00-692-8826
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 486795 | 57733 | STEWART-WARNER CORPORATION |
| 7700297 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 4720-00-692-8826
| Characteristic | Specifications |
|---|---|
| OUTER COVERING ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND WATERPROOF AND VIBRATION RESISTANT |
| MEASURING METHOD AND LENGTH | RL20.000 INCHES NOMINAL |
| INNER CONVEYING TUBE STYLE | OVERLAPPED SQUARE LOCKED UNPACKED |
| CROSS-SECTIONAL SHAPE STYLE | ROUND |
| SPECIAL FEATURES | LAYER COMPOSITION AND LOCATION: SPIRAL OVERLAPPED SQUARE LOCKED BRASS, LAST LAYER |
| INSIDE DIAMETER | 1.500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |
