NSN 4720-00-555-3114
Part Details | METALLIC HOSE ASSEMBLY
4720-00-555-3114 A length of metallic hose with fittings on one or both ends. For items without fittings, see HOSE, METALLIC. Excludes CONDUIT, ELECTRICAL; CONDUIT ASSEMBLY, ELECTRICAL; CASING, FLEXIBLE CONTROL; and CASING, FLEXIBLE SHAFT ASSEMBLY.
Alternate Parts: 4125112, 41251-12, 4720-00-555-3114, 00-555-3114, 4720005553114, 005553114
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-555-3114 | 17972 ( HOSE ASSEMBLY, METALLIC ) |
REFERENCE DRAWINGS & PICTURES
ROUND

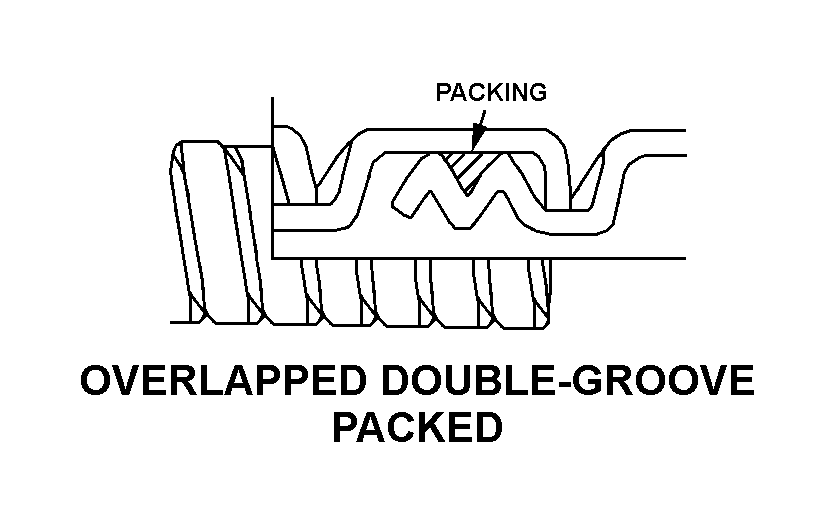

OVERLAPPED DOUBLE-GROOVE PACKED
Cross Reference | NSN 4720-00-555-3114
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 41251-12 | 05463 | WHEELABRATOR-FRYE INCBALCRANK PRODUCTS |
Technical Data | NSN 4720-00-555-3114
| Characteristic | Specifications |
|---|---|
| MEASURING METHOD AND LENGTH | RL12.000 INCHES NOMINAL |
| MINIMUM INSIDE BENDING RADIUS | 2.625 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | ROUND |
| INSIDE DIAMETER | 0.375 INCHES NOMINAL |
| INNER CONVEYING TUBE STYLE | OVERLAPPED DOUBLE-GROOVE PACKED |
| FEATURES PROVIDED | IDENTICAL ENDS |
| SUPPLEMENTARY FEATURES | THIS ITEM HAS BEEN REVIEWED FOR ASBESTOS MATERIAL. THE CURRENT APPROVED SOURCES 05463 HAVE INDICATED THIER PART NUMBER CONTAINED ASBESTOS PRIOR TO 1984. THEY CONTINUE TO MANUFACTURE THE SAME PART NUMBER WITHOUT ASBESTOS MATERIAL AFTER 1984 |
