NSN 4710-00-542-2939
Part Details | PLASTIC PIPE
4710-00-542-2939 A tubular product formed from plastic material. The nominal pipe size and outside diameter conform to iron pipe size designators or the dimensions conform to Standard Thermoplastic Pipe Dimensions Ratio (SDR) Tables. It may have threaded ends or the ends may be capable of being formed by heating. For items not conforming to these dimensioning criteria, see TUBING, NONMETALLIC.
Alternate Parts: ASTM D1785, 4710-00-542-2939, 00-542-2939, 4710005422939, 005422939
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-542-2939 | 21439 ( PIPE, PLASTIC ) |
REFERENCE DRAWINGS & PICTURES

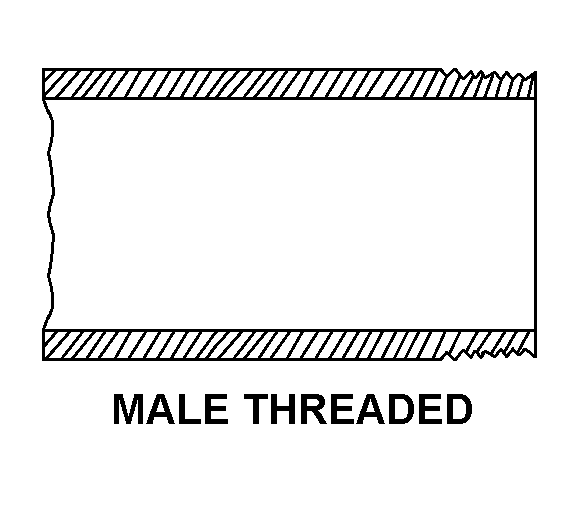

MALE THREADED
Cross Reference | NSN 4710-00-542-2939
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ASTM D1785 | 81346 | AMERICAN SOCIETY FOR TESTING ANDMATERIALS |
Technical Data | NSN 4710-00-542-2939
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYVINYL CHLORIDE |
| NOMINAL PIPE SIZE DESIGNATION | 2.000 INCHES |
| WALL THICKNESS | 0.240 INCHES MINIMUM |
| INSIDE DIAMETER | 1.895 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.375 INCHES NOMINAL |
| LENGTH | 10.000 FEET NOMINAL |
| END CONNECTION STYLE | MALE THREADED |
| TERMINATION THREADS PER INCH | 11 1/2 |
| COUPLING | INCLUDED |
| HYDROSTATIC TEST PRESSURE | 1100.0 POUNDS PER SQUARE INCH |
| MAXIMUM OPERATING PRESSURE | 150.0 POUNDS PER SQUARE INCH |
| SPECIAL FEATURES | HAND TIGHT |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 1 GRADE AND 120 SCHEDULE |
