NSN 4710-00-485-9650
Part Details | METALLIC BENT TUBE
4710-00-485-9650 A bent hollow item, welded or seamless. It has a round, square or any other cross section, with a continuous periphery. It is primarily designed to convey fluids, gases and/or semisolids. Excludes items of circular cross section which conform in dimensional characteristics to PIPE, METALLIC; ELBOW, PIPE; ELBOW, TUBE; BEND, ELECTRICAL CONDUIT; BEND, PIPE, RETURN; and BEND, TUBE, RETURN. For items with end fittings on one or both ends, see TUBE ASSEMBLY, METAL.
Alternate Parts: 10937324, 4710-00-485-9650, 00-485-9650, 4710004859650, 004859650
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | MAY 28, 1969 | 00-485-9650 | 32507 ( TUBE, BENT, METALLIC ) |
REFERENCE DRAWINGS & PICTURES
PLAIN ROUND

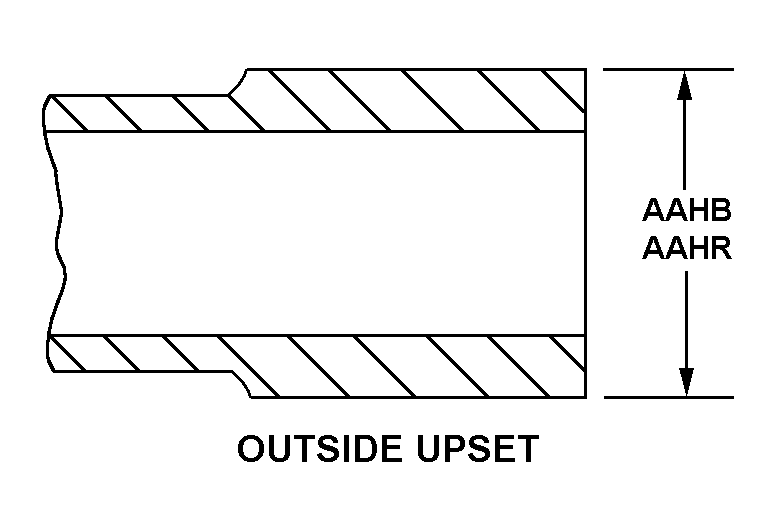

OUTSIDE UPSET
OUTSIDE UPSET
Cross Reference | NSN 4710-00-485-9650
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10937324 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 4710-00-485-9650
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 |
| MATERIAL DOCUMENT AND CLASSIFICATION | A66$JGAAISI 304$JGASAE 30304 AMERICAN SOCIETY FOR TESTING AND MATERIALS (ASTM) 2ND MATERIAL RESPONSE |
| CROSS-SECTIONAL SHAPE STYLE | PLAIN ROUND |
| WALL THICKNESS | 0.083 INCHES MINIMUM AND 0.109 INCHES MAXIMUM |
| DIAMETER | 3.500 INCHES NOMINAL |
| FIRST END STYLE | OUTSIDE UPSET |
| FIRST END OUTSIDE DIAMETER | 3.500 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| CONSTRUCTION | SEAMLESS |
