NSN 4420-01-481-9929
Part Details | INDUSTRIAL FLUID COOLER SHELL
4420-01-481-9929 A cylindrical device with flanged end(s) designed to encase the CORE ASSEMBLY, FLUID COOLER of a COOLER, FLUID, INDUSTRIAL. May include inlet and outlet fluid connections. Excludes HOUSING, as modified.
Alternate Parts: BTAS 313SV, BTAS 313S-V, 226L62562, 226L62562M00, 226L62562-M00, 4420-01-481-9929, 01-481-9929, 4420014819929, 014819929
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | FEB 02, 2001 | 01-481-9929 | 37496 ( SHELL, FLUID COOLER, INDUSTRIAL ) |
REFERENCE DRAWINGS & PICTURES

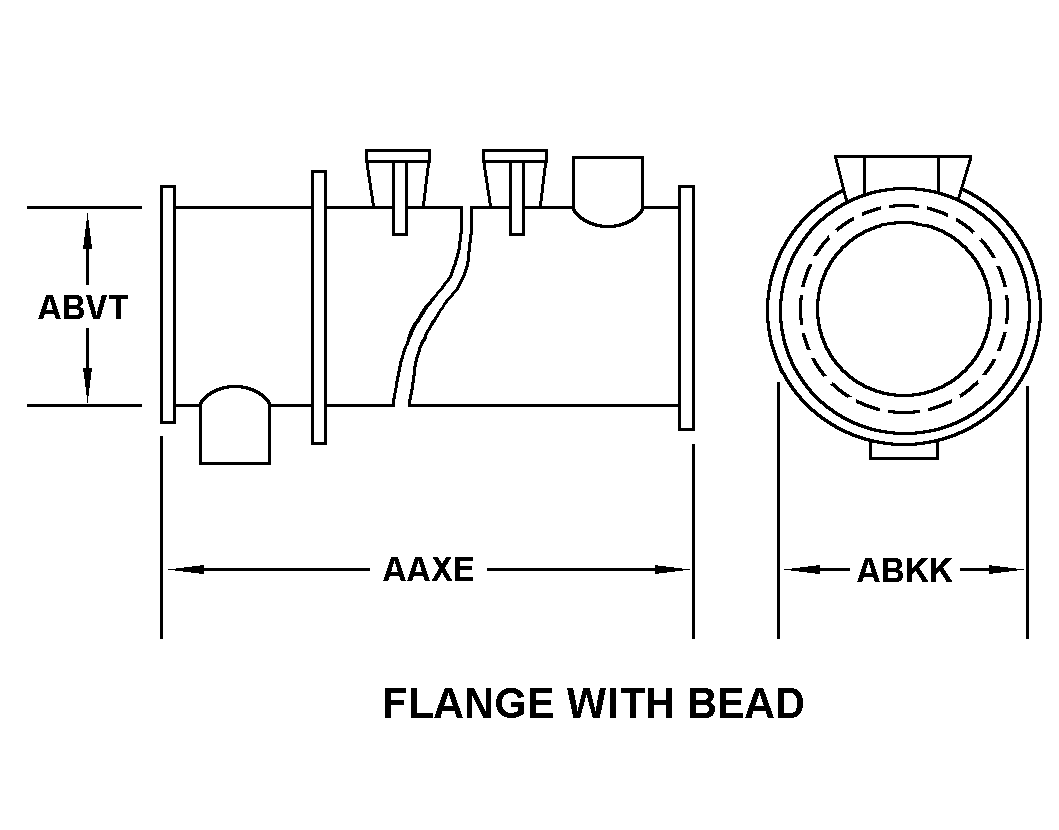

FLANGE WITH BEAD
Cross Reference | NSN 4420-01-481-9929
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BTAS 313S-V | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| 226L62562 | U2692 | JOHNSON CONTROLS LTD YORK NAVY SYSTES |
| 226L62562-M00 | U2692 | JOHNSON CONTROLS LTD YORK NAVY SYSTES |
Technical Data | NSN 4420-01-481-9929
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLANGE WITH BEAD |
| FLANGE DIAMETER | 4.625 INCHES NOMINAL |
| DIAMETER | 3.468 INCHES NOMINAL |
| LENGTH | 11.250 INCHES NOMINAL |
| SPECIAL FEATURES | NOMINAL SHELL SIZE 3 INCHES; FOR SUCTION LINE SERVICE; RUST RESISTANT WITH STAINLESS STEEL BOLTS |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | DRIER SHELL |
