NSN 4310-01-613-3662
Part Details | SPECIAL SHAPED PUMP DIAPHRAGM
4310-01-613-3662 An item constructed of one or more layers of thin flexible material, either laminated or separated. It is designed to form a tight seal between the openings of a pump and to transmit pressure inducted motion either directly or through a mechanical linkage. The item may contain bolt holes and/or a center hole. Excludes DIAPHRAGM, VALVE, SPECIAL SHAPED.
Alternate Parts: 85622, 4310-01-613-3662, 01-613-3662, 4310016133662, 016133662
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | NOV 06, 2012 | 01-613-3662 | 36011 ( DIAPHRAGM, PUMP, SPECIAL SHAPED ) |

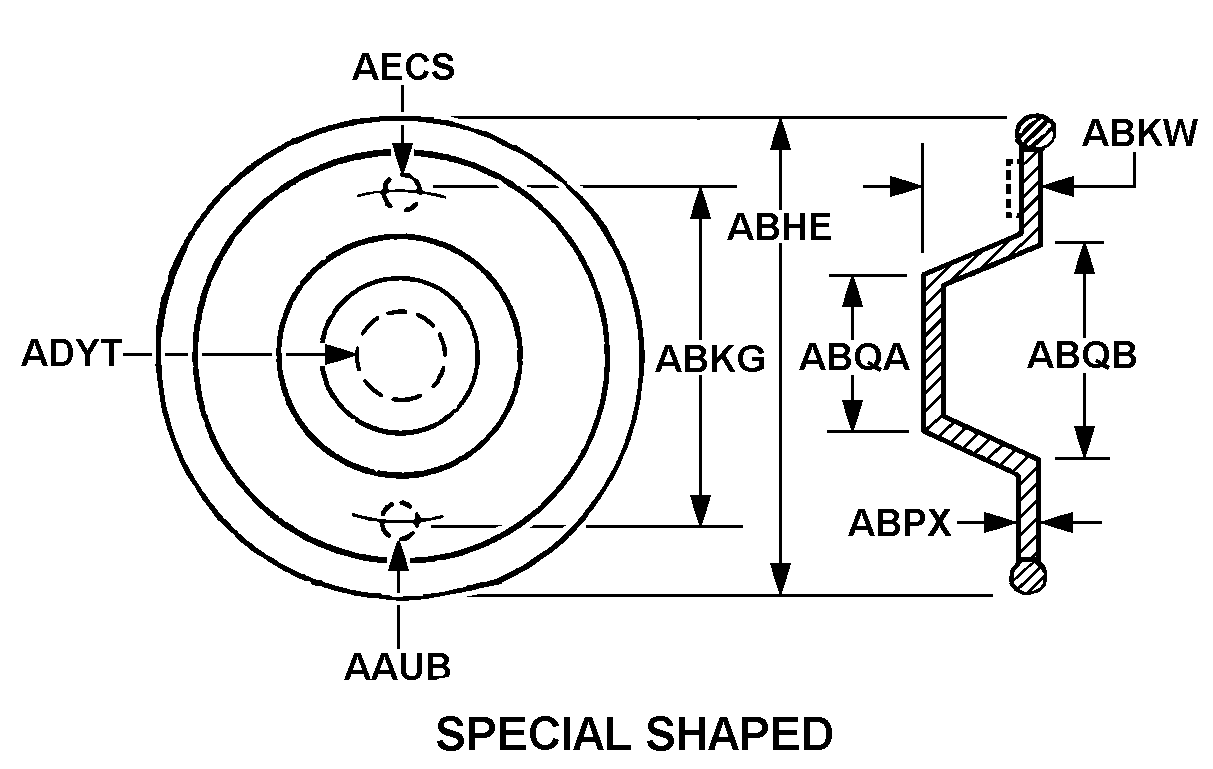

REFERENCE DRAWINGS & PICTURES
SPECIAL SHAPED
Cross Reference | NSN 4310-01-613-3662
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 85622 | 1PL57 | LINCOLN INDUSTRIAL CORPORATIONDIV LINCOLN INDUSTRIAL CORPORATION |
Technical Data | NSN 4310-01-613-3662
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| STYLE DESIGNATOR | SPECIAL SHAPED |
| BOLT HOLE QUANTITY | 4 |
| MEDIA FOR WHICH DESIGNED | AIR |
| SPECIAL FEATURES | MAX FREE DELIVERY GPM: 14, AIR INLET NPT(F); 1/4", MAX REC INLET PRESSURE: 100 PSI, MAX SUSP SOLIDS: 1/8", PUMP INLET/OUTLET NPT: 1/2"/1/" |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | AIR OPERATED DIAPHRAGM PUMPS |
