NSN 4210-01-586-0510
Part Details | AUTOMATIC SPRINKLER CONTROL VALVE
4210-01-586-0510 A device designed for installation in the main riser of a dry or empty pipe automatic sprinkler system and held closed by spring force, air, or water pressure. Water is automatically released to the sprinkler system either by releasing or lowering the pressure beyond the minimum requirement or admitting and increasing the pressure to overcome the spring force.
Alternate Parts: 62830, 100PM4B, 100PM-4B, 4210-01-586-0510, 01-586-0510, 4210015860510, 015860510
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | JUN 17, 2010 | 01-586-0510 | 03969 ( VALVE, CONTROL, AUTOMATIC SPRINKLER ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT THRU

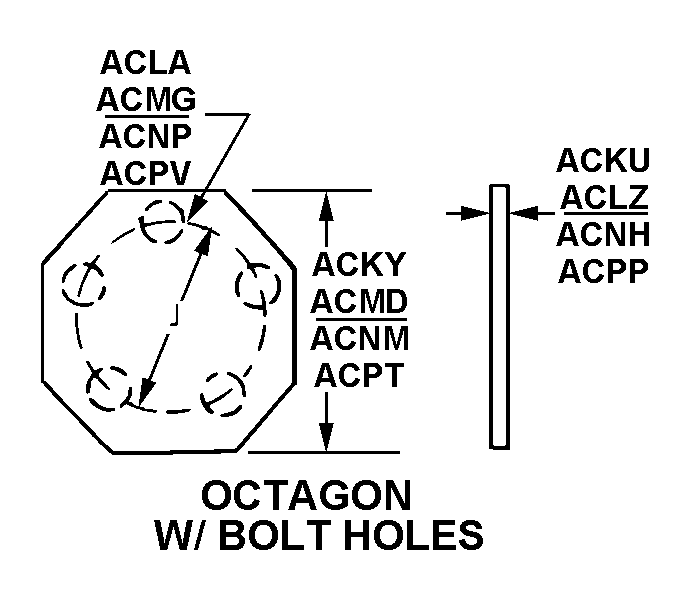

OCTAGON W/ BOLT HOLES
OCTAGON W/ BOLT HOLES
OCTAGON W/ BOLT HOLES
OCTAGON W/ BOLT HOLES
Cross Reference | NSN 4210-01-586-0510
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 62830 | 86144 | CHEMICAL SALES AND SERVICE CO INC |
| 100PM-4B | 86144 | CHEMICAL SALES AND SERVICE CO INC |
Technical Data | NSN 4210-01-586-0510
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 4 STRAIGHT THRU |
| FLOW CONTROL DEVICE | Q ANY ACCEPTABLE |
| FIRST END FLANGE SHAPE STYLE | OCTAGON W/ BOLT HOLES |
| FIRST END BOLT HOLE QUANTITY | 4 |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| SECOND END FLANGE SHAPE STYLE | OCTAGON W/ BOLT HOLES |
| SECOND END BOLT HOLE QUANTITY | 4 |
| VALVE OPERATION METHOD | DIAPHRAGM |
| SPRINKLER SYSTEM FOR WHICH DESIGNED | DRY PIPE |
| SPECIAL FEATURES | INTEGRAL TEST PORT FOR VISUAL POSITION INDICATOR; TESTING WITHOUT VALVE ACTIVATION |
