NSN 4140-01-613-2388
Part Details | CENTRIFUGAL FAN IMPELLER
4140-01-613-2388 An item with blades, vanes, or paddles equally spaced radially or horizontally around the periphery of a hub, rotor, or wheel. It is the rotating part of a centrifugal fan, electric motor, generator and the like which creates a flow of air or gas perpendicular to the axis of rotation.
Alternate Parts: 403004024H, 4140-01-613-2388, 01-613-2388, 4140016132388, 016132388
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | NOV 02, 2012 | 01-613-2388 | 10088 ( IMPELLER, FAN, CENTRIFUGAL ) |
REFERENCE DRAWINGS & PICTURES

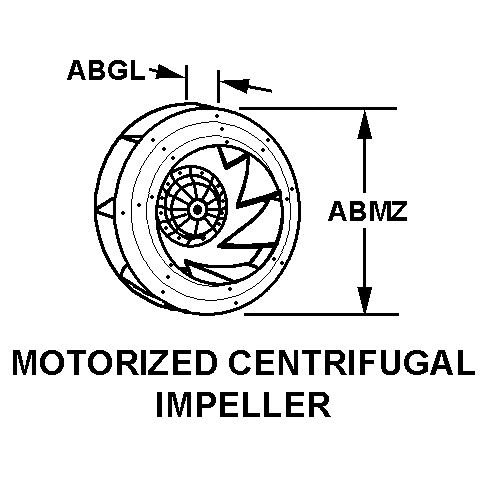

MOTORIZED CENTRIFUGAL IMPELLER
Cross Reference | NSN 4140-01-613-2388
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 403004024H | 1K1F3 | FISCHER PANDA GENERATORS, INC. |
Technical Data | NSN 4140-01-613-2388
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | MOTORIZED CENTRIFUGAL IMPELLER |
| SPECIAL FEATURES | 6640015471760 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | WHEEL BLOWER |
