NSN 4140-01-487-3180
Part Details | CENTRIFUGAL FAN IMPELLER
4140-01-487-3180 An item with blades, vanes, or paddles equally spaced radially or horizontally around the periphery of a hub, rotor, or wheel. It is the rotating part of a centrifugal fan, electric motor, generator and the like which creates a flow of air or gas perpendicular to the axis of rotation.
Alternate Parts: 02250050240, 02250050-240, 4140-01-487-3180, 01-487-3180, 4140014873180, 014873180
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | AUG 01, 2001 | 01-487-3180 | 10088 ( IMPELLER, FAN, CENTRIFUGAL ) |
REFERENCE DRAWINGS & PICTURES

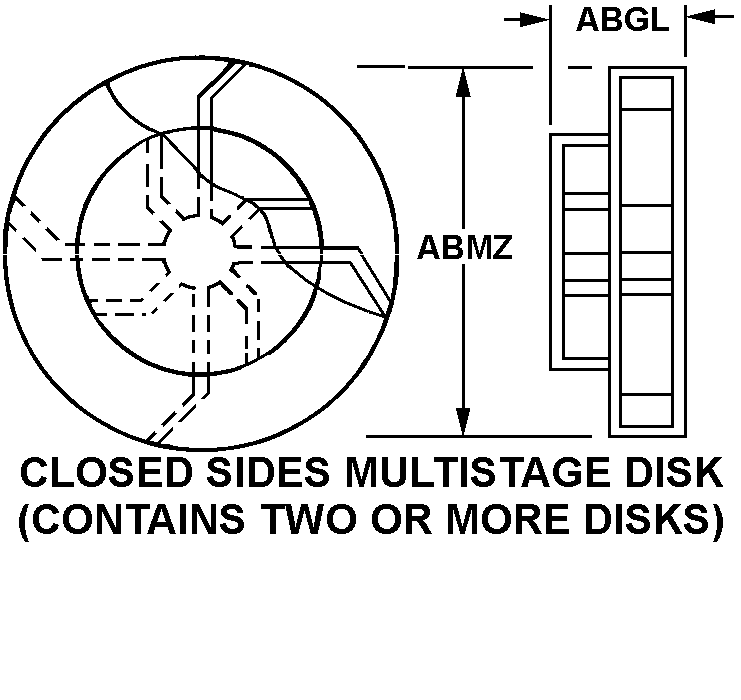

CLOSED SIDES MULTISTAGE DISK
Cross Reference | NSN 4140-01-487-3180
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02250050-240 | 31654 | SULLAIR CORP |
Technical Data | NSN 4140-01-487-3180
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLOSED SIDES MULTISTAGE DISK |
| ROTATION DIRECTION FOR WHICH DESIGNED | COUNTERCLOCKWISE |
| ATTACHMENT METHOD | BOLT HOLE |
