NSN 4140-01-468-6724
Part Details | CENTRIFUGAL FAN HOUSING
4140-01-468-6724 The outer casing of a centrifugal fan designed to inclose an impeller. It is usually of one piece construction containing inlet(s) and outlets.
Alternate Parts: 616226, 6-1-6226, 4140-01-468-6724, 01-468-6724, 4140014686724, 014686724
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | OCT 19, 1999 | 01-468-6724 | 61534 ( HOUSING, CENTRIFUGAL FAN ) |
REFERENCE DRAWINGS & PICTURES

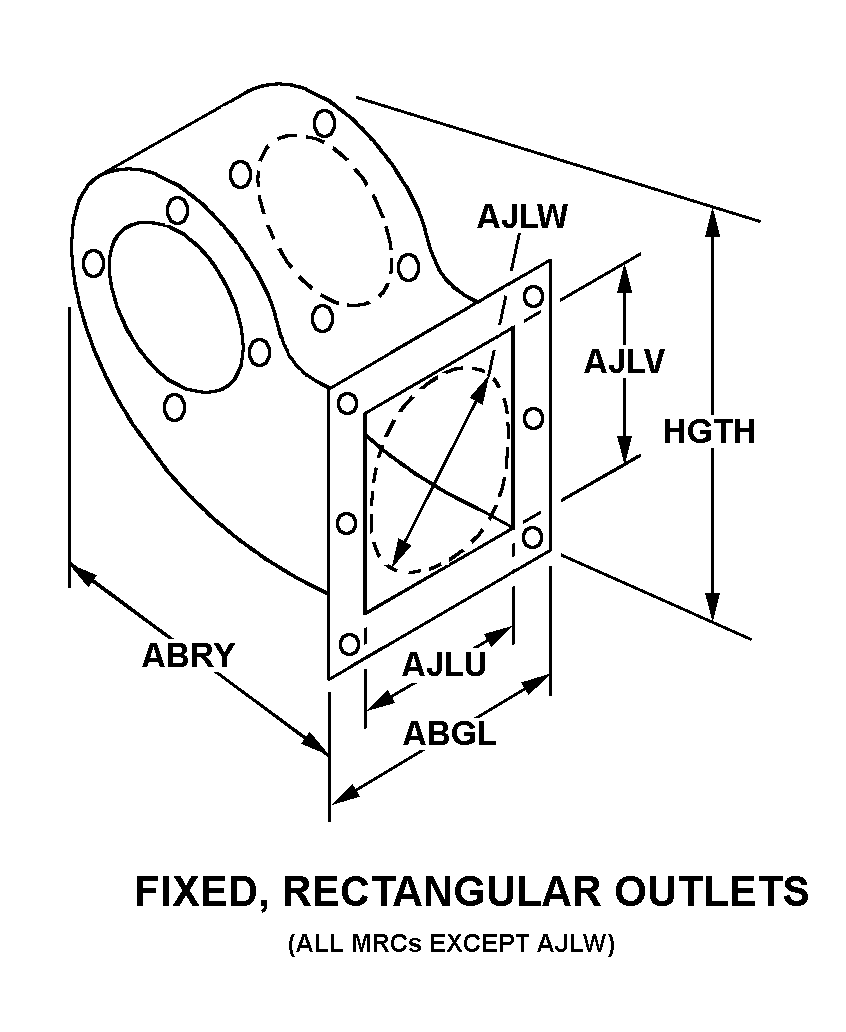

FIXED, RECTANGULAR OUTLETS
Cross Reference | NSN 4140-01-468-6724
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6-1-6226 | 81337 | ARMY, UNITED STATES DEPARTMENT OFTHE |
Technical Data | NSN 4140-01-468-6724
| Characteristic | Specifications |
|---|---|
| HOUSING STYLE | FIXED, RECTANGULAR OUTLETS |
| WIDTH | 5.380 INCHES NOMINAL |
| OUTLET INSIDE WIDTH | 2.620 INCHES NOMINAL |
| PRIME MOVER FOR WHICH DESIGNED | ELECTRIC MOTOR |
| SPECIAL FEATURES | ALUMINUM CASTING |
| END ITEM IDENTIFICATION | 3510012229301 |
