NSN 4140-01-467-7983
Part Details | CENTRIFUGAL FAN
4140-01-467-7983 A nonpositive displacement mechanical device having a centrifugal fan impeller inclosed within a housing. It is designed to move air or gas over a wide range of volumes and pressures. The air or gas is drawn in axially and discharged radially or drawn in radially and discharged axially by centrifugal force through an outlet in the housing.
Alternate Parts: VCR135B1CW, VCR135B1-CW, 4140-01-467-7983, 01-467-7983, 4140014677983, 014677983
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | SEP 15, 1999 | 01-467-7983 | 04254 ( FAN, CENTRIFUGAL ) |

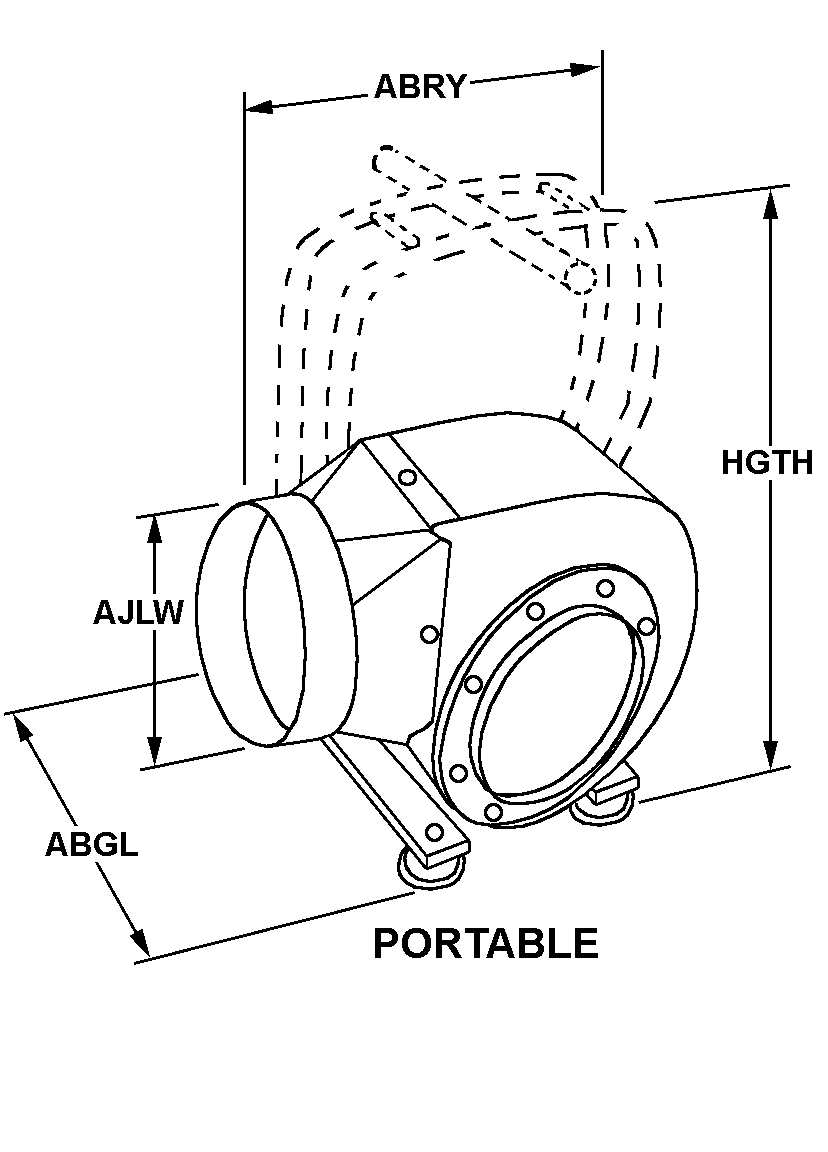

REFERENCE DRAWINGS & PICTURES
PORTABLE
Cross Reference | NSN 4140-01-467-7983
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| VCR135B1-CW | 12454 | BARRY BLOWERDIV OF THE MARLEY-WYLAIN CO |
Technical Data | NSN 4140-01-467-7983
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PORTABLE |
| WIDTH | 30.500 INCHES NOMINAL |
| LENGTH | 22.875 INCHES NOMINAL |
| OUTLET INSIDE DIAMETER | 14.312 INCHES NOMINAL |
| HEIGHT | 27.000 INCHES NOMINAL |
| DRIVE TYPE | B$C |
| SHAFT BEARING TYPE | ROLLER |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| AIR FLOW RATE | 7800.0 CUBIC FEET PER MINUTE NOMINAL |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 13.0 INCHES OF WATER |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 RACK |
| OUTLET LOCATION | TOP |
| DISCHARGE DIRECTION | ANGULAR UP |
| SPECIAL FEATURES | ARRANGEMENT 3 DWDI FANS ARE OFFERED IN SIZES UP TO 365 AND IN CLASS I, II, OR III CONSTRUCTION; MAXIMUM OPERATING TEMP IS 180 DEGREE F |
