NSN 4140-01-467-0377
Part Details | CENTRIFUGAL FAN IMPELLER
4140-01-467-0377 An item with blades, vanes, or paddles equally spaced radially or horizontally around the periphery of a hub, rotor, or wheel. It is the rotating part of a centrifugal fan, electric motor, generator and the like which creates a flow of air or gas perpendicular to the axis of rotation.
Alternate Parts: S5909, 4140-01-467-0377, 01-467-0377, 4140014670377, 014670377
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | AUG 11, 1999 | 01-467-0377 | 10088 ( IMPELLER, FAN, CENTRIFUGAL ) |
REFERENCE DRAWINGS & PICTURES

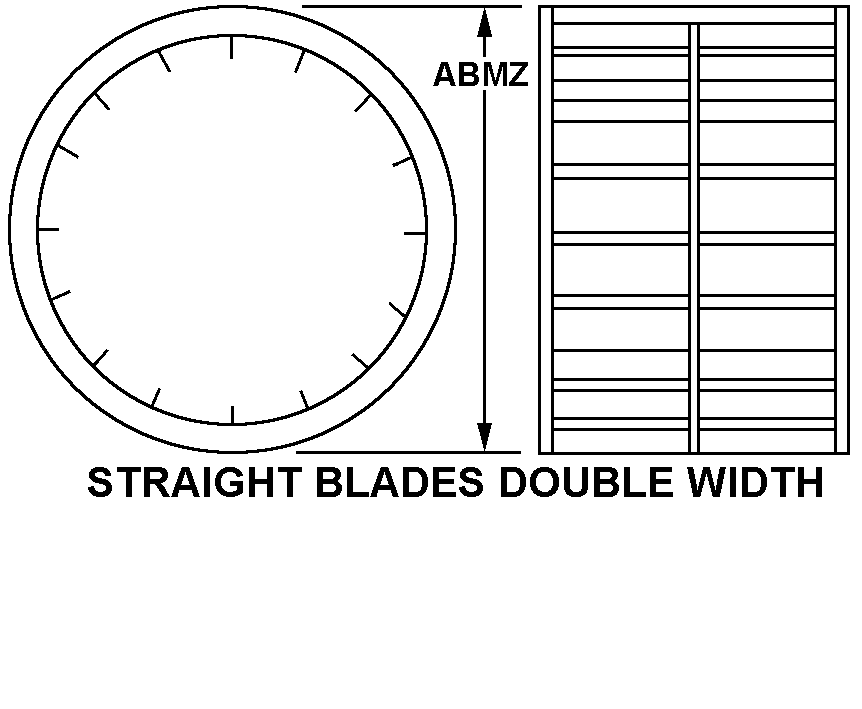

STRAIGHT BLADES DOUBLE WIDTH
Cross Reference | NSN 4140-01-467-0377
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S5909 | 0V5R4 | SNOWBIRD ENVIRONMENTAL SYSTEMSCORPORATION |
Technical Data | NSN 4140-01-467-0377
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT BLADES DOUBLE WIDTH |
| WIDTH | 6.890 INCHES NOMINAL |
| DIAMETER | 4.747 INCHES NOMINAL |
| BLADE QUANTITY | 50 |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| ATTACHMENT METHOD | SETSCREW |
| END ITEM IDENTIFICATION | 4120-01-456-6954, AIR CONDITIONER |
