NSN 4030-01-607-1026
Part Details | DETACHABLE LINK
4030-01-607-1026 A metal link made in two or more pieces, held securely together by means of a locking pin or other device but may taken apart for reuse. It is used to connect a chain and/or a cable and/or a rope and/or a strap, and the like. Excludes transmission chain links.
Alternate Parts: 664287, 4SE015581, 4SE01558-1, 4030-01-607-1026, 01-607-1026, 4030016071026, 016071026
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | MAY 31, 2012 | 01-607-1026 | 68660 ( LINK, DETACHABLE ) |

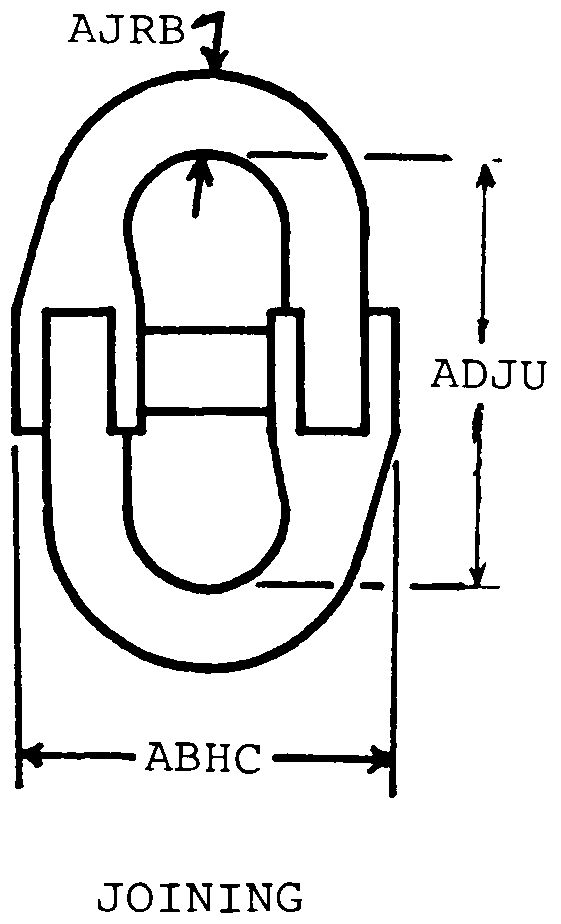

REFERENCE DRAWINGS & PICTURES
JOINING
Cross Reference | NSN 4030-01-607-1026
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 664287 | 75535 | CROSBY GROUP INCDBA NATIONAL SWAGE |
| 4SE01558-1 | 28638 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 1.3.1 BLDG 562-1 |
Technical Data | NSN 4030-01-607-1026
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | JOINING |
| INSIDE LENGTH | 5.43 INCHES NOMINAL |
| MATERIAL DIAMETER | 1.000 INCHES NOMINAL |
| FABRICATION METHOD | FORGED |
| SPECIAL FEATURES | FURNISHED AS INEGRAL UNIT COMPLETE WITH STUD ASSEMBLY AND LOAD PIN;CAPACITY OF 39,000 LBS (MIN);BAG/TAG WITH NAWC PART NO. AND CONTRACT NO. |
| TEST DATA DOCUMENT | 28638-4SE01558-1 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
| NONDEFINITIVE SPEC/STD DATA | 0.88 SIZE AND GV FINISH |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | LINK,COUPLING,TRAILER TIE-DOWN |
