NSN 4030-01-605-4153
Part Details | SHACKLE
4030-01-605-4153 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Alternate Parts: 3841T52, S0138CP05, S0138-CP05, 4030-01-605-4153, 01-605-4153, 4030016054153, 016054153
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | APR 19, 2012 | 01-605-4153 | 11074 ( SHACKLE ) |
REFERENCE DRAWINGS & PICTURES

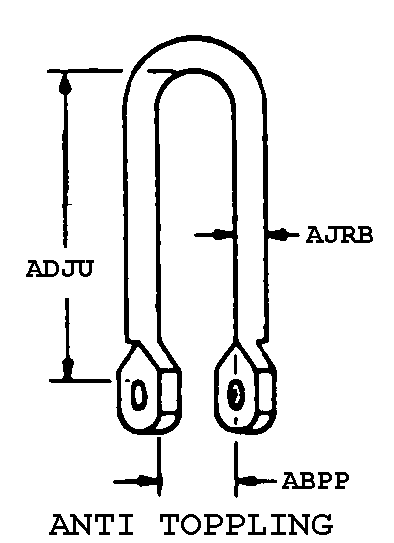

ANTITOPPLING
Cross Reference | NSN 4030-01-605-4153
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3841T52 | 0KVE6 | MCMASTER-CARR SUPPLY COMPANY |
| S0138-CP05 | 1CXX6 | SUNCOR STAINLESS, INC. |
Technical Data | NSN 4030-01-605-4153
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | ANTITOPPLING |
| OPENING WIDTH | 0.187 INCHES NOMINAL |
| INSIDE LENGTH | 1.500 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.250 INCHES NOMINAL |
| SPECIAL FEATURES | WORK LOAD LIMIT IS 825LBS |
| END ITEM IDENTIFICATION | BOAT, MPF UTILITY |
