NSN 4030-01-291-0818
Part Details | ROPE THIMBLE
4030-01-291-0818 A metallic or nonmetallic ring, loop, solid plate, casting or moulding, formed with a grooved outer edge to fit within an eye splice; or maybe a crescent-shaped hollow tube. It is generally used in multiple leg slings to protect from chafing.
Alternate Parts: L835028A0567, L835028A0567, 835028A0567, 4030-01-291-0818, 01-291-0818, 4030012910818, 012910818
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | DEC 22, 1988 | 01-291-0818 | 11234 ( THIMBLE, ROPE ) |

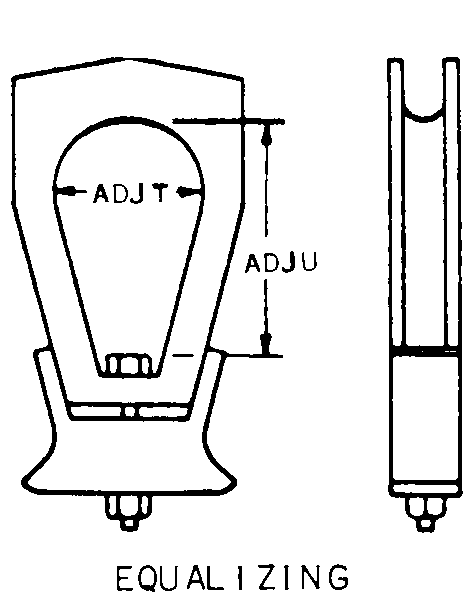

REFERENCE DRAWINGS & PICTURES
EQUALIZING
Cross Reference | NSN 4030-01-291-0818
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L835028A0567 | 56161 | GENERAL DYNAMICS LAND SYSTEMS -CANADA CORP |
| L835028A0567 | 72712 | GENERAL MOTORS OVERSEAS DISTRIBUTIONCORP DIV OF GENERAL MOTORS CORP |
| 835028A0567 | 01365 | MARINE CORPS LOGISTICS COMMANDTECHNICAL DATA REPOSITORY |
Technical Data | NSN 4030-01-291-0818
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 |
| STYLE DESIGNATOR | EQUALIZING |
| ACCOMMODATED MATERIAL DIAMETER | 1.880 INCHES NOMINAL |
