NSN 4030-01-247-9481
Part Details | WIRE ROPE SWAGING SLEEVE
4030-01-247-9481 A compression fitting designed to make a permanent eye, lap, or running splice on an item.
Alternate Parts: RW48, RW4-8, 4030005, 4030-005, 40300050001 LOWER, 4030-005-0001 LOWER, 4030-01-247-9481, 01-247-9481, 4030012479481, 012479481
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 15, 1987 | 01-247-9481 | 16283 ( SWAGING SLEEVE, WIRE ROPE ) |

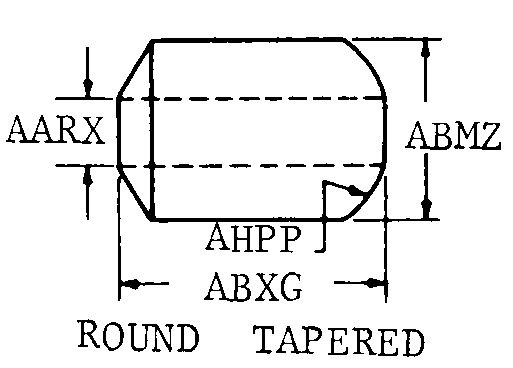

REFERENCE DRAWINGS & PICTURES
ROUND TAPERED
Cross Reference | NSN 4030-01-247-9481
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RW4-8 | 91796 | DETROIT DIAMOND DRILLING INC. |
| 4030-005 | 04614 | TEXTRON SYSTEMS CORPORATIONDBA TEXTRON DEFENSE SYSTEMS |
| 4030-005-0001 LOWER | 04614 | TEXTRON SYSTEMS CORPORATIONDBA TEXTRON DEFENSE SYSTEMS |
Technical Data | NSN 4030-01-247-9481
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | ROUND TAPERED |
| INSIDE DIAMETER | 0.380 INCHES NOMINAL |
| DIAMETER | 0.480 INCHES NOMINAL |
| OVERALL LENGTH | 0.860 INCHES NOMINAL |
| OUTER RADIUS | 0.060 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.250 INCHES NOMINAL |
| SAFE OPERATING LOAD RATING | 6800.000 POUNDS NOMINAL |
