NSN 4010-01-293-6722
Part Details | END CHAIN LINK
4010-01-293-6722 A metal loop in various shapes and styles other than circular, forged or welded in one piece, usually used on the end of an item for attaching other parts. May also be used with thimble(s) or shackle(s) on the end of wire or fiber rope. Excludes LINK, CHAIN CONNECTING; and LINK, CHAIN, LAP.
Alternate Parts: 2234252W8, 22342-52W8, 4010-01-293-6722, 01-293-6722, 4010012936722, 012936722
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | FEB 03, 1989 | 01-293-6722 | 05499 ( LINK, CHAIN, END ) |

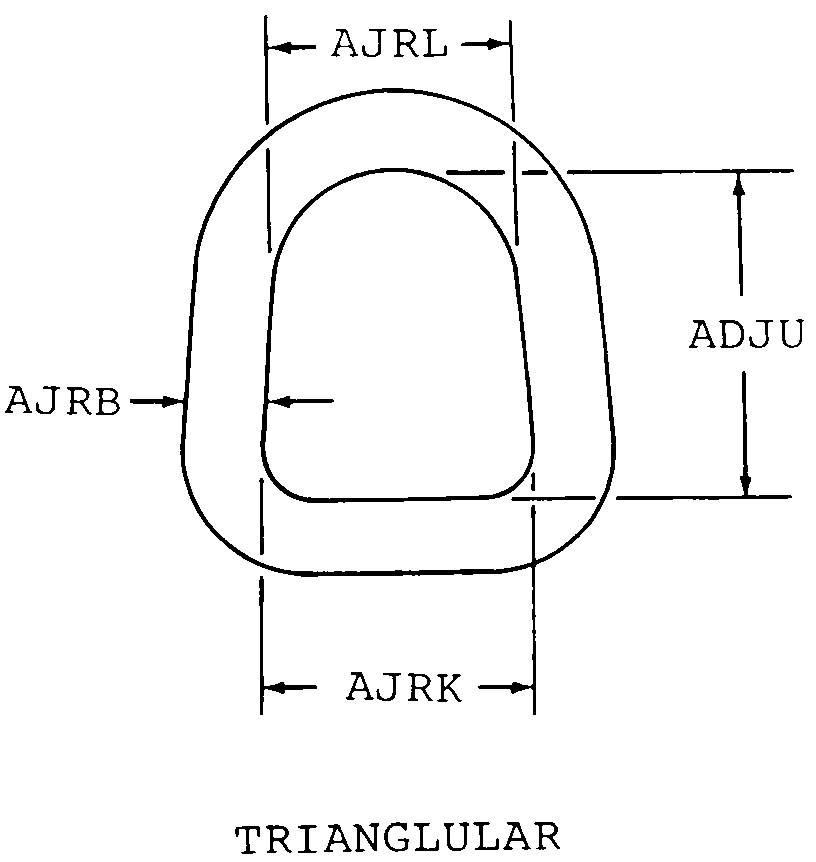

REFERENCE DRAWINGS & PICTURES
TRIANGULAR
Cross Reference | NSN 4010-01-293-6722
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22342-52W8 | 32707 | TELAIR INTERNATIONAL INCORPORATEDDBA NORDISK AVIATION PRODUCTS |
Technical Data | NSN 4010-01-293-6722
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | TRIANGULAR |
| INSIDE LENGTH | 1.500 INCHES NOMINAL |
