NSN 4010-01-216-2968
Part Details | CONNECTING CHAIN LINK
4010-01-216-2968 A metal item in two halves in the shape of a letter C which are fixed together permanently by placing the two halves together and peening over the pins which are an integral part of the item. Excludes LINK, ROLLER CHAIN.
Alternate Parts: ST9M4746, ST9M474-6, G33438, G334-3/8, 4010-01-216-2968, 01-216-2968, 4010012162968, 012162968
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | SEP 07, 1985 | 01-216-2968 | 02620 ( LINK, CHAIN, CONNECTING ) |
REFERENCE DRAWINGS & PICTURES

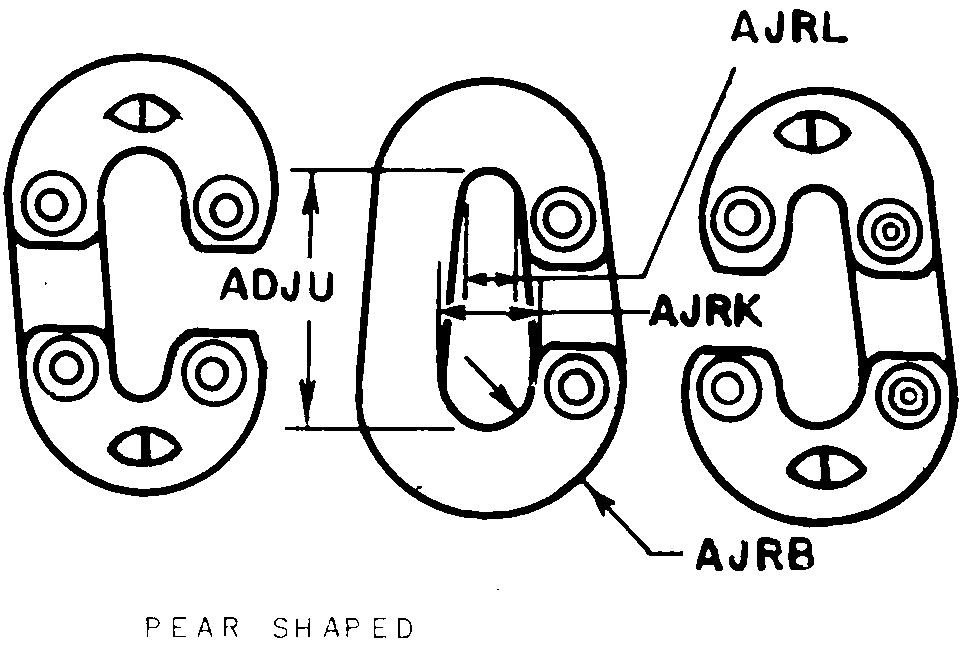

PEAR SHAPED
Cross Reference | NSN 4010-01-216-2968
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST9M474-6 | 76301 | BOEING COMPANY, THEDBA BOEING |
| G334-3/8 | 75535 | CROSBY GROUP INCDBA NATIONAL SWAGE |
Technical Data | NSN 4010-01-216-2968
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1035 |
| STYLE DESIGNATOR | PEAR SHAPED |
| INSIDE LENGTH | 2.000 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.375 INCHES NOMINAL |
| MAJOR INSIDE WIDTH | 0.810 INCHES NOMINAL |
| MINOR INSIDE WIDTH | 0.560 INCHES NOMINAL |
