NSN 4010-01-197-0644
Part Details | DETACHABLE LINK
4010-01-197-0644 A metal link made in two or more pieces, held securely together by means of a locking pin or other device but may taken apart for reuse. It is used to connect a chain and/or a cable and/or a rope and/or a strap, and the like. Excludes transmission chain links.
Alternate Parts: 8947T15, 54T29661, 4010-01-197-0644, 01-197-0644, 4010011970644, 011970644
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | DEC 18, 1984 | 01-197-0644 | 68660 ( LINK, DETACHABLE ) |

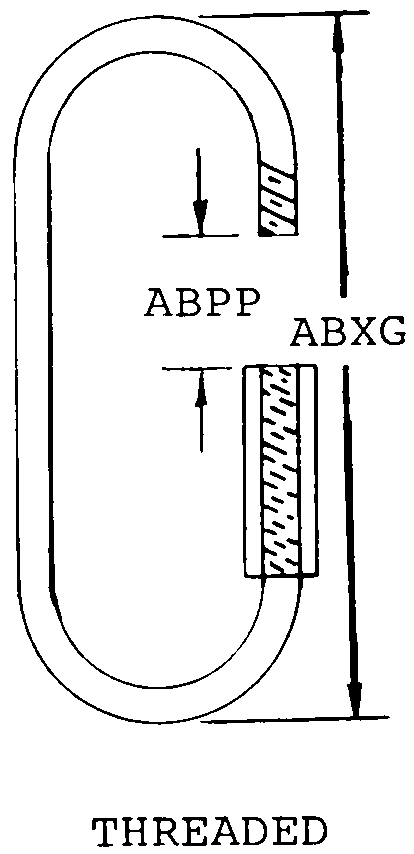

REFERENCE DRAWINGS & PICTURES
THREADED
Cross Reference | NSN 4010-01-197-0644
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8947T15 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
| 54T29661 | 54275 | SHADBOLT AND BOYD CO |
Technical Data | NSN 4010-01-197-0644
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| STYLE DESIGNATOR | THREADED |
| OPENING WIDTH | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 1.875 INCHES NOMINAL |
| SAFE OPERATING LOAD RATING | 440.000 POUNDS NOMINAL |
