NSN 4010-01-037-5961
Part Details | WIRE ROPE
4010-01-037-5961 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Alternate Parts: 7011497164, 701-149716-4, 701149716001, 701-149716-001, 4010-01-037-5961, 01-037-5961, 4010010375961, 010375961
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | MAR 21, 1977 | 01-037-5961 | 30295 ( ROPE, WIRE ) |
REFERENCE DRAWINGS & PICTURES

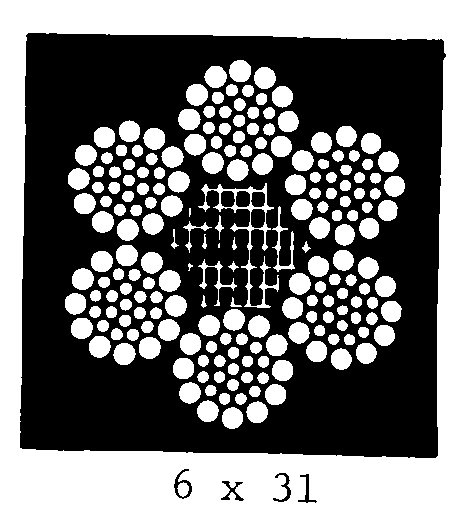

6 X 31
Cross Reference | NSN 4010-01-037-5961
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 701-149716-4 | 95310 | UNIDYNAMICS/SAINT LOUIS INCCONROE OPNS |
| 701-149716-001 | 95310 | UNIDYNAMICS/SAINT LOUIS INCCONROE OPNS |
Technical Data | NSN 4010-01-037-5961
| Characteristic | Specifications |
|---|---|
| CORE CONSTRUCTION | FIBER |
| STYLE DESIGNATOR | 6 X 31 |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 124.000 FEET NOMINAL |
| BREAKING STRENGTH | 400.0 POUNDS MINIMUM |
