NSN 3610-00-496-9620
Part Details | LITHOGRAPHIC COPYING CAMERA
3610-00-496-9620 A CAMERA, STILL PICTURE designed for use in the graphic arts to make accurate, distortion-free copies from flat surface subject matter upon sensitized material.
Alternate Parts: 3610-00-496-9620, 00-496-9620, 3610004969620, 004969620
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 36 | OCT 06, 1969 | 00-496-9620 | 18934 ( CAMERA, COPYING, LITHOGRAPHIC ) |
REFERENCE DRAWINGS & PICTURES

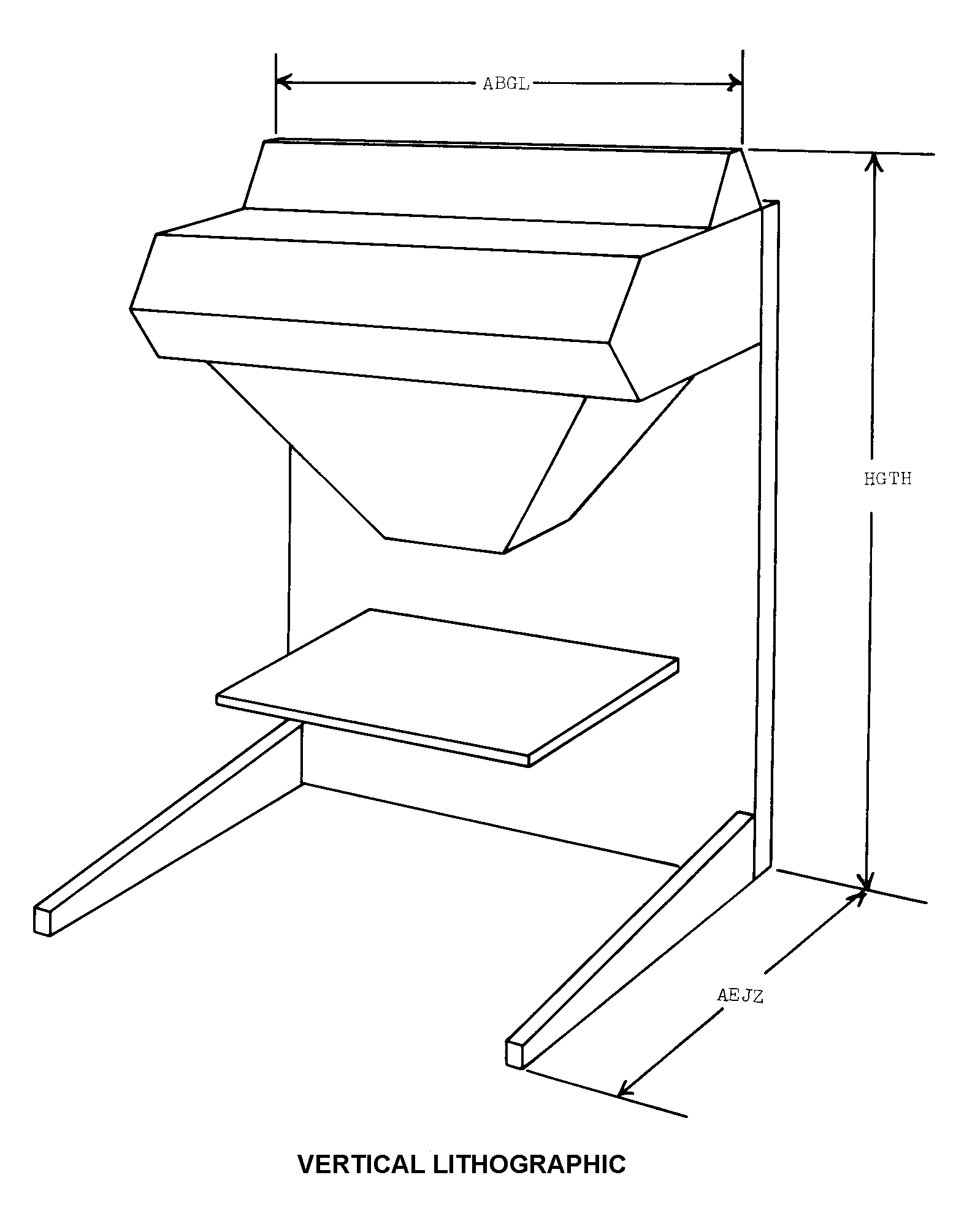

VERTICAL LITHOGRAPHIC
Cross Reference | NSN 3610-00-496-9620
| Part Number | Cage Code | Manufacturer |
|---|
Technical Data | NSN 3610-00-496-9620
| Characteristic | Specifications |
|---|---|
| CAMERA TYPE | GALLERY |
| MAXIMUM REDUCTION RATIO | 3 TO 1 |
| MAXIMUM ENLARGEMENT RATIO | 1 TO 3.0 |
| STYLE DESIGNATOR | VERTICAL LITHOGRAPHIC |
| CAMERA MOUNTING TYPE | FIXED |
| FILM ACCOMMODATION TYPE | CUT FILM |
| EXPOSURE QUANTITY ACCOMMODATED | 1 |
| FOCUS METHOD | LEAD SCREW |
| VIEWFINDER TYPE | GROUND GLASS BACK |
| LENS MOUNTING METHOD | BOARD |
| FILM HOLDER TYPE | VACUUM BACK |
| COPY BOARD TYPE | VACUUM |
