NSN 3130-01-264-6482
Part Details | BALL BEARING UNIT
3130-01-264-6482 An assembled unit, composed of a housing incorporating a single or multiple row ball bearing(s), designed to meet various or specific conditions of mounting.
Alternate Parts: SPB24OPN, SPB-24-OPN, 3130-01-264-6482, 01-264-6482, 3130012646482, 012646482
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | OCT 05, 1987 | 01-264-6482 | 30556 ( BEARING UNIT, BALL ) |
REFERENCE DRAWINGS & PICTURES

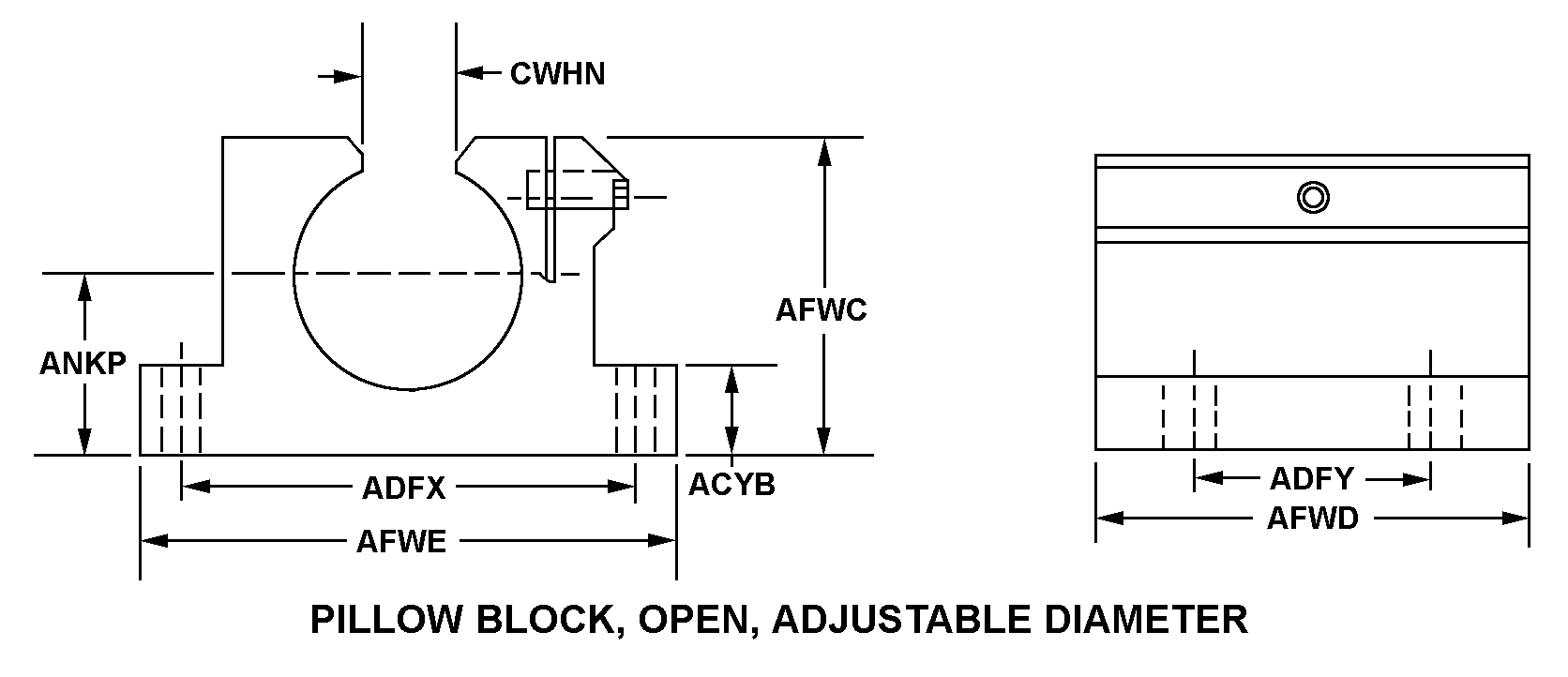

PILLOW BLOCK, OPEN, ADJUSTABLE DIAMETER
Cross Reference | NSN 3130-01-264-6482
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SPB-24-OPN | 96881 | THOMSON INDUSTRIES INC |
Technical Data | NSN 3130-01-264-6482
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 1.5000 INCHES NOMINAL |
| STYLE DESIGNATOR | PILLOW BLOCK, OPEN, ADJUSTABLE DIAMETER |
| BASE THICKNESS | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 4.115 INCHES MINIMUM AND 4.135 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 2.490 INCHES MINIMUM AND 2.510 INCHES MAXIMUM |
| HOUSING HEIGHT | 2.938 INCHES NOMINAL |
| HOUSING LENGTH | 3.750 INCHES NOMINAL |
| HOUSING WIDTH | 4.750 INCHES NOMINAL |
| HEIGHT FROM BOTTOM OF BASE TO BORE CENTERLINE | 1.747 INCHES MINIMUM AND 1.753 INCHES MAXIMUM |
| HOUSING OPENING WIDTH | 0.750 INCHES MINIMUM |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.2812 INCHES NOMINAL |
| LUBRICATION FITTING TYPE | SELF LUBRICATED |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| ALIGNMENT TYPE | SELF-ALIGNING |
| BLOCK TYPE | FIXED |
| SEAL TYPE | CONTACT |
| SEAL LOCATION | BOTH ENDS |
| LOAD CAPABILITY TYPE | RADIAL AND THRUST |
| FEATURES PROVIDED | GROUND ROLLING ELEMENT GROOVE |
