NSN 3130-01-071-7788
Part Details | BEARING UNIT HOUSING
3130-01-071-7788 A single or multiple piece item without ball, plain or roller bearing(s). It is designed to meet various or specific conditions of mounting. For items with bearings, see BEARING UNIT, BALL; BEARING UNIT, PLAIN; and BEARING UNIT, ROLLER.
Alternate Parts: 960C3771, 960C377-1, 3130-01-071-7788, 01-071-7788, 3130010717788, 010717788
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | FEB 14, 1979 | 01-071-7788 | 30559 ( HOUSING, BEARING UNIT ) |
REFERENCE DRAWINGS & PICTURES

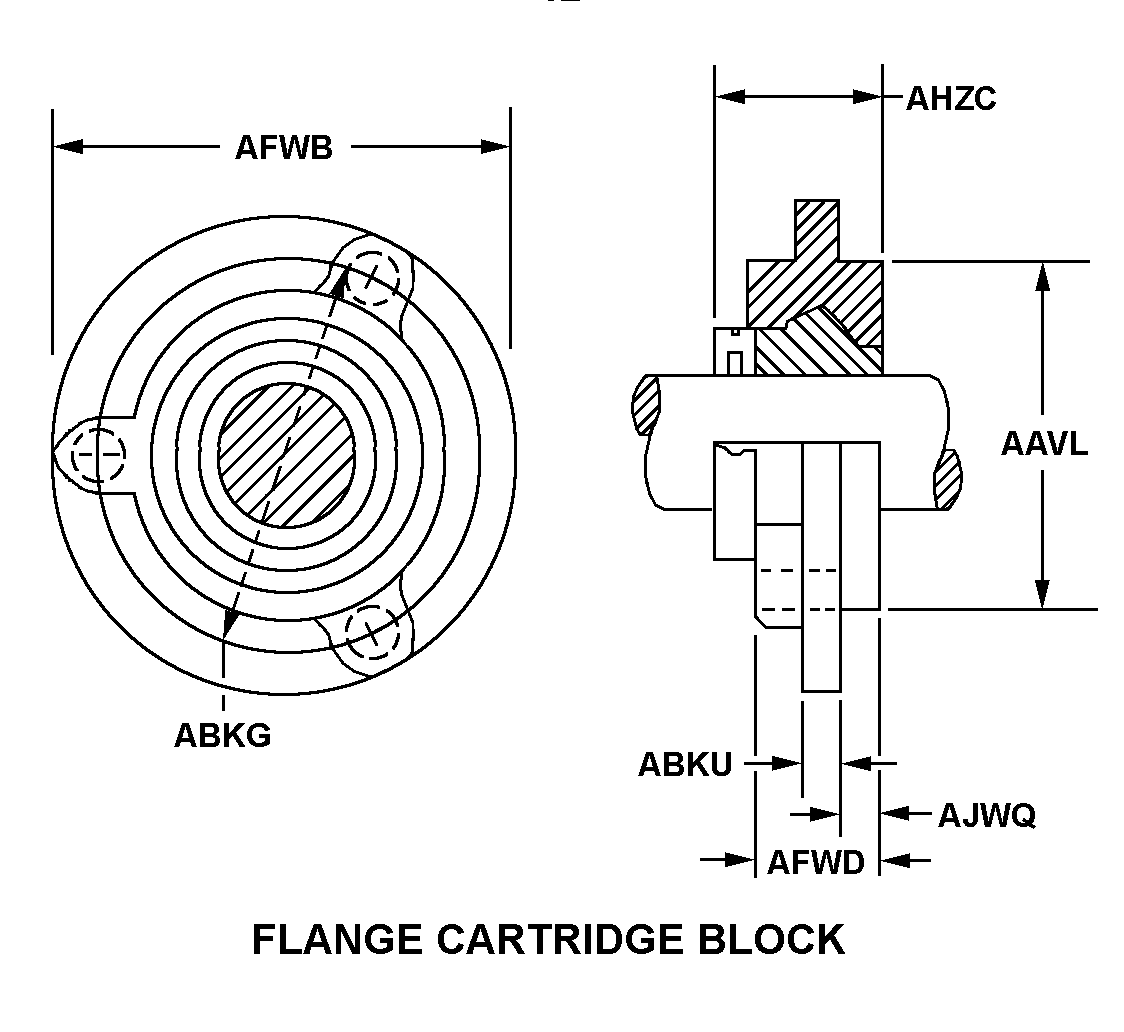

FLANGE CARTRIDGE BLOCK
Cross Reference | NSN 3130-01-071-7788
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 960C377-1 | 83843 | SUNDSTRAND CORPELECTRIC POWER SYSTEMS DIV |
Technical Data | NSN 3130-01-071-7788
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 1.2080 INCHES NOMINAL |
| STYLE DESIGNATOR | FLANGE CARTRIDGE BLOCK |
| PILOT DIAMETER | 1.208 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 0.076 INCHES NOMINAL |
| FLANGE THICKNESS | 0.243 INCHES NOMINAL |
| HOUSING DIAMETER | 3.686 INCHES NOMINAL |
| HOUSING LENGTH | 0.695 INCHES NOMINAL |
| ASSEMBLY OVERALL LENGTH | 0.695 INCHES NOMINAL |
| PILOT LENGTH | 0.273 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, THREADED |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| SPECIAL FEATURES | SIX EQUALLY SPACED HOLES IN 3 SECTION'S TOTALING 16 AA0.184 DIA. AA0.545 BETWEEN EACH SET OF SIX HOLES |
