NSN 3120-00-253-0464
Part Details | V BEARING
3120-00-253-0464 A cylindrical device, primarily designed to furnish a bearing surface for a low-speed oscillating shaft. The item consists of a precision machined or inclosed V or modified V groove and may include a drilled hole for spring loading.
Alternate Parts: MS356881, MS35688-1, 3120-00-253-0464, 00-253-0464, 3120002530464, 002530464
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUN 22, 1973 | 00-253-0464 | 20574 ( BEARING, V ) |

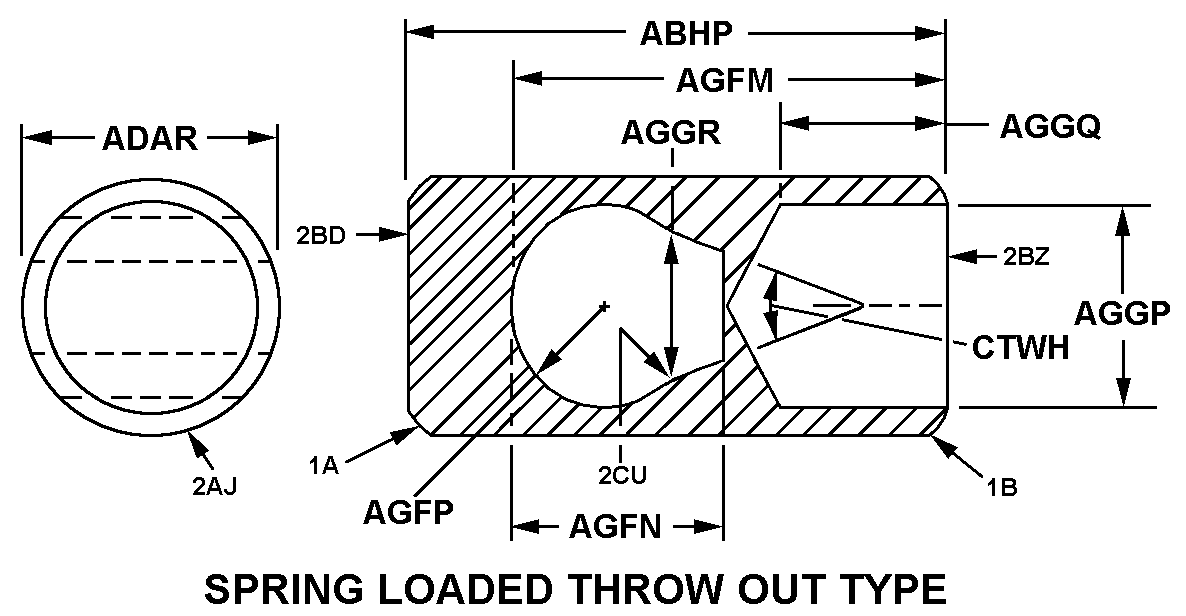

REFERENCE DRAWINGS & PICTURES
SPRING LOADED THROW OUT TYPE
Cross Reference | NSN 3120-00-253-0464
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS35688-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 3120-00-253-0464
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPRING LOADED THROW OUT TYPE |
| OVERALL LENGTH | 0.7969 INCHES MINIMUM AND 0.8125 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.3743 INCHES MINIMUM AND 0.3748 INCHES MAXIMUM |
| END OF ROUNDED EXTENSION TO RIGHT END OF BEARING DISTANCE | 0.6550 INCHES MINIMUM AND 0.6650 INCHES MAXIMUM |
| END OF ROUNDED EXTENSION OF V GROOVE TO BOTTOM OF V GROOVE DISTANCE | 0.3320 INCHES MINIMUM AND 0.3370 INCHES MAXIMUM |
| V GROOVE ROUNDED EXTENSION RADIUS | 0.1400 INCHES MINIMUM AND 0.1450 INCHES MAXIMUM |
| DRILLED HOLE DIAMETER | 0.3125 INCHES NOMINAL |
| DRILLED HOLE DEPTH | 0.2500 INCHES MINIMUM AND 0.2636 INCHES MAXIMUM |
| V GROOVE WIDTH | 0.2500 INCHES NOMINAL |
| V GROOVE ANGLE | 44.0 DEGREES NOMINAL |
