NSN 3120-00-176-5703
Part Details | SLEEVE BEARING
3120-00-176-5703 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Alternate Parts: 7B8779, 3120-00-176-5703, 00-176-5703, 3120001765703, 001765703
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-176-5703 | 13205 ( BEARING, SLEEVE ) |
REFERENCE DRAWINGS & PICTURES

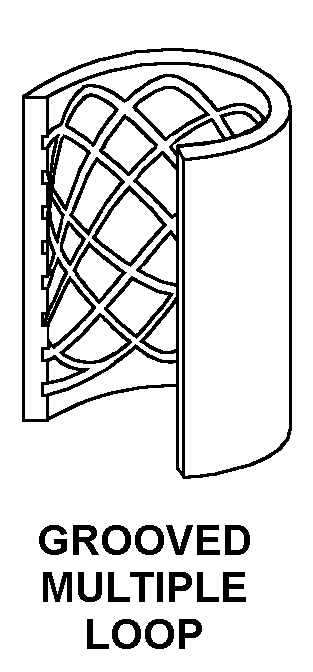

GROOVED MULTIPLE LOOP
SOLID, EXTERNAL FLANGE ONE END
Cross Reference | NSN 3120-00-176-5703
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7B8779 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
Technical Data | NSN 3120-00-176-5703
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLID, EXTERNAL FLANGE ONE END |
| OVERALL LENGTH | 1.8025 INCHES MINIMUM AND 1.8225 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 1.9900 INCHES MINIMUM AND 2.0100 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 1.7400 INCHES MINIMUM AND 1.7600 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 2.6775 INCHES MINIMUM AND 2.6975 INCHES MAXIMUM |
| FLANGE WIDTH | 0.2400 INCHES MINIMUM AND 0.2600 INCHES MAXIMUM |
| LUBRICANT ACCOMMODATION STYLE | GROOVED MULTIPLE LOOP |
| SPECIAL FEATURES | GROOVES GRAPHITE FILLED |
