NSN 3120-00-168-1430
Part Details | SLEEVE BEARING
3120-00-168-1430 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Alternate Parts: 843517120, 84351-7120, 3120-00-168-1430, 00-168-1430, 3120001681430, 001681430
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-168-1430 | 13205 ( BEARING, SLEEVE ) |
REFERENCE DRAWINGS & PICTURES

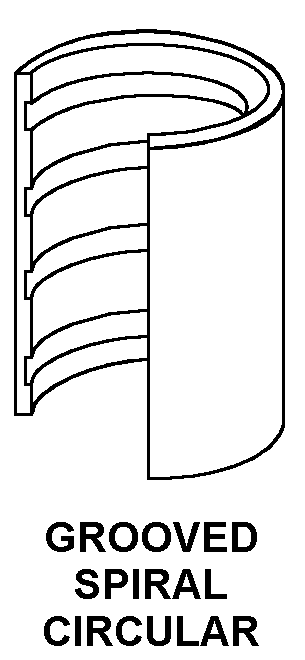

GROOVED SPIRAL CIRCULAR
SOLID, PLAIN, NO OUTSIDE FLANGES
Cross Reference | NSN 3120-00-168-1430
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 84351-7120 | 44114 | BAE SYSTEMS LAND & ARMAMENTS L.P. |
Technical Data | NSN 3120-00-168-1430
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLID, PLAIN, NO OUTSIDE FLANGES |
| OVERALL LENGTH | 0.6875 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.3750 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.8750 INCHES NOMINAL |
| LUBRICANT ACCOMMODATION STYLE | GROOVED SPIRAL CIRCULAR |
| SPECIAL FEATURES | TWO FLATS 180 DEG APART ON ONE END OF OD SURFACE OF BODY,1.0469 IN. W ACROSS FLATS |
