NSN 3120-00-106-8134
Part Details | ROD END PLAIN BEARING
3120-00-106-8134 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Alternate Parts: CG4DX1, CG-4-DX-1, 153512B, 701180A, 3120-00-106-8134, 00-106-8134, 3120001068134, 001068134
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUL 19, 1968 | 00-106-8134 | 13209 ( BEARING, PLAIN, ROD END ) |
REFERENCE DRAWINGS & PICTURES

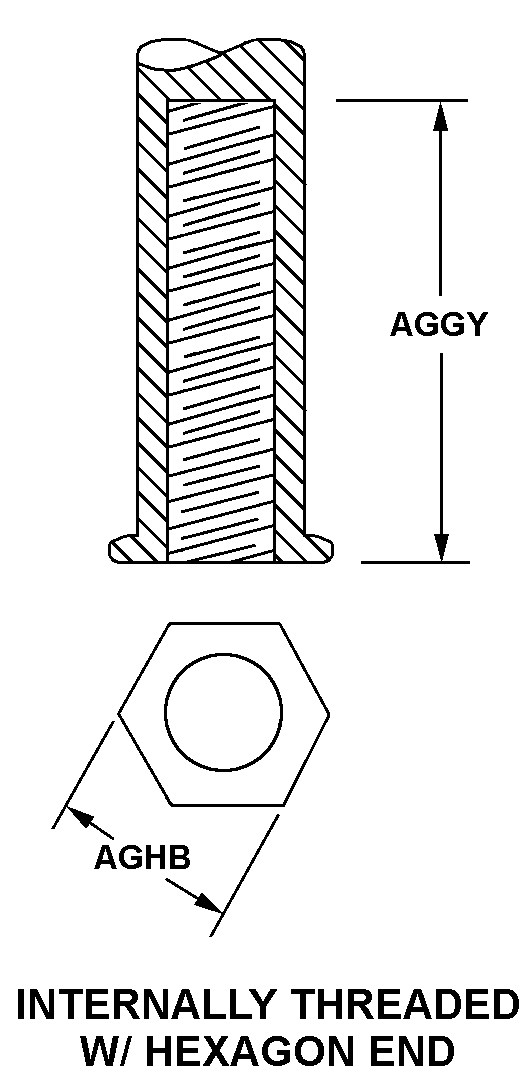

INTERNALLY THREADED W/ HEXAGON END
BALL TYPE
Cross Reference | NSN 3120-00-106-8134
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CG-4-DX-1 | 56644 | AURORA BEARING COMPANY |
| 153512B | 64104 | DRESSER, INC.DIV DRESSER WAUKESHA |
| 701180A | 64104 | DRESSER, INC.DIV DRESSER WAUKESHA |
Technical Data | NSN 3120-00-106-8134
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BALL TYPE |
| OVERALL LENGTH | 1.6875 INCHES NOMINAL |
| BORE DIAMETER | 0.2500 INCHES NOMINAL |
| OUTER MEMBER OUTSIDE DIAMETER | 0.7500 INCHES NOMINAL |
| BORE CENTER TO SHANK END DISTANCE | 1.3125 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 0.2812 INCHES NOMINAL |
| INNER MEMBER WIDTH | 0.3750 INCHES NOMINAL |
| SHANK STYLE | INTERNALLY THREADED W/ HEXAGON END |
| SHANK THREAD LENGTH | 0.7500 INCHES NOMINAL |
| SHANK WIDTH ACROSS WRENCH FLATS | 0.4688 INCHES NOMINAL |
