NSN 3120-00-080-9562
Part Details | V BEARING
3120-00-080-9562 A cylindrical device, primarily designed to furnish a bearing surface for a low-speed oscillating shaft. The item consists of a precision machined or inclosed V or modified V groove and may include a drilled hole for spring loading.
Alternate Parts: MS356891, MS35689-1, MS35689, 3120-00-080-9562, 00-080-9562, 3120000809562, 000809562
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | DEC 13, 1967 | 00-080-9562 | 20574 ( BEARING, V ) |

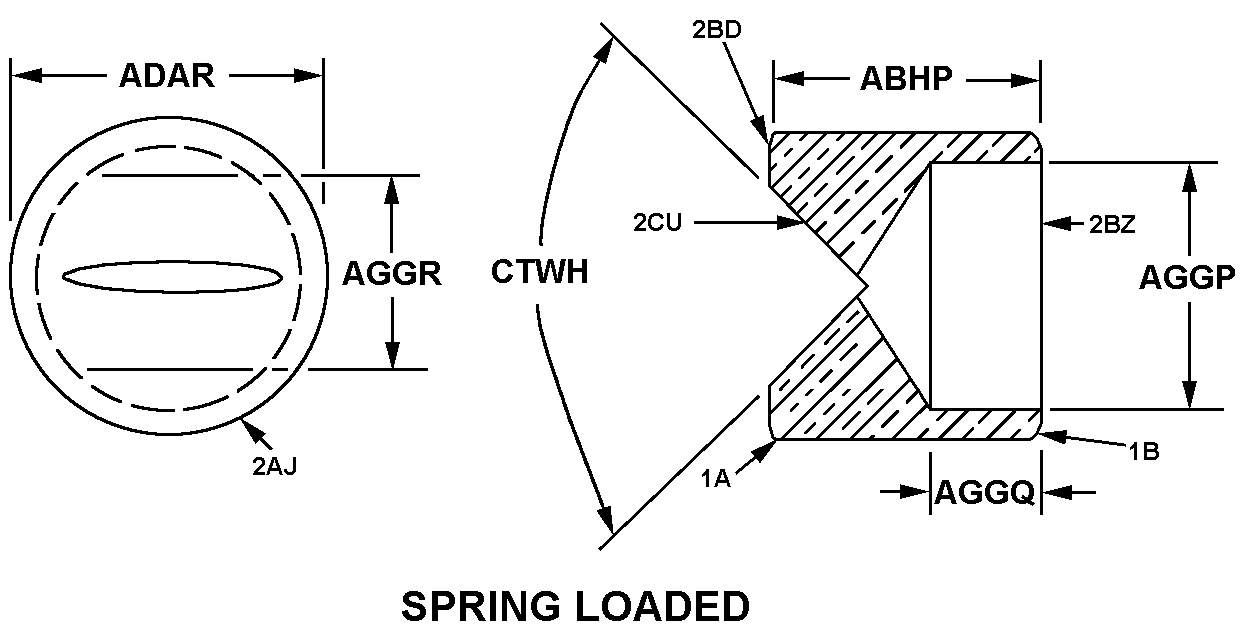

REFERENCE DRAWINGS & PICTURES
SPRING LOADED
Cross Reference | NSN 3120-00-080-9562
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS35689-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| MS35689 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 3120-00-080-9562
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPRING LOADED |
| OVERALL LENGTH | 0.3438 INCHES MINIMUM AND 0.3594 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.2498 INCHES MINIMUM AND 0.2503 INCHES MAXIMUM |
| DRILLED HOLE DIAMETER | 0.1875 INCHES NOMINAL |
| DRILLED HOLE DEPTH | 0.2344 INCHES MINIMUM AND 0.2498 INCHES MAXIMUM |
| V GROOVE WIDTH | 0.2000 INCHES MINIMUM AND 0.2050 INCHES MAXIMUM |
| V GROOVE ANGLE | 90.0 DEGREES NOMINAL |
