NSN 3120-00-080-2635
Part Details | SPHERICAL PLAIN BEARING
3120-00-080-2635 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.
Alternate Parts: 6861088, 6861088, EU63453A, 3120-00-080-2635, 00-080-2635, 3120000802635, 000802635
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | DEC 15, 1967 | 00-080-2635 | 13204 ( BEARING, PLAIN, SPHERICAL ) |

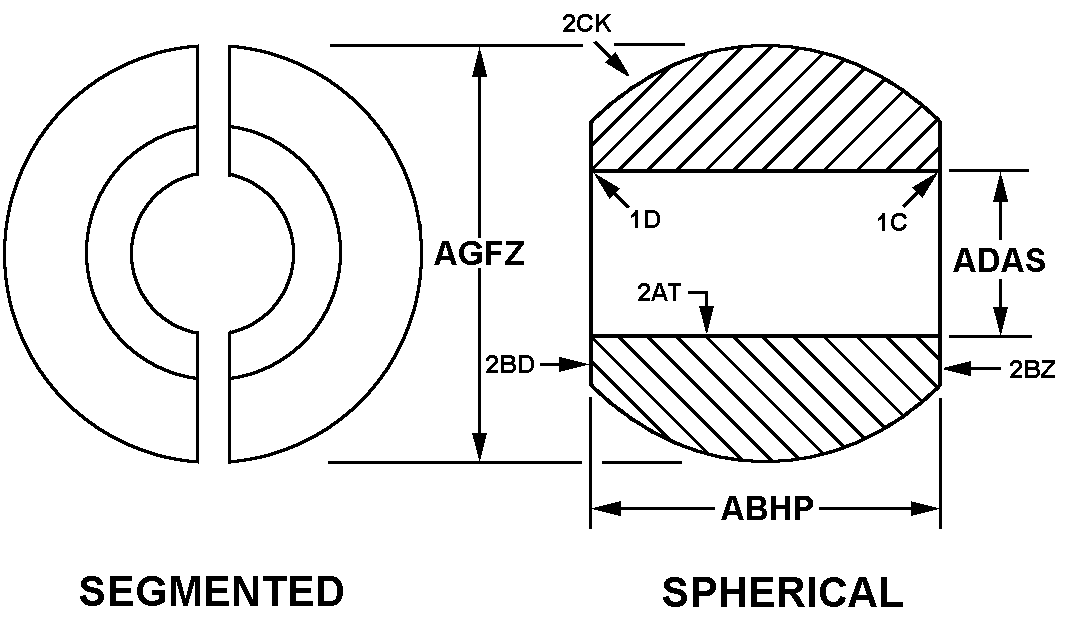

REFERENCE DRAWINGS & PICTURES
SEGMENTED
Cross Reference | NSN 3120-00-080-2635
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6861088 | 73342 | ALLISON TRANSMISSION, INC. |
| 6861088 | K0680 | ROLLS-ROYCE AIRLINES |
| EU63453A | K0680 | ROLLS-ROYCE AIRLINES |
Technical Data | NSN 3120-00-080-2635
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SEGMENTED |
| OVERALL LENGTH | 0.4990 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.5312 INCHES MINIMUM AND 0.5317 INCHES MAXIMUM |
| SPHERICAL BODY DIAMETER | 0.8740 INCHES MINIMUM AND 0.8745 INCHES MAXIMUM |
