NSN 3120-00-075-5529
Part Details | SPHERICAL PLAIN BEARING
3120-00-075-5529 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.
Alternate Parts: MS395ADX4UL, C61304, MS4267A, 3120-00-075-5529, 00-075-5529, 3120000755529, 000755529
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-075-5529 | 13204 ( BEARING, PLAIN, SPHERICAL ) |

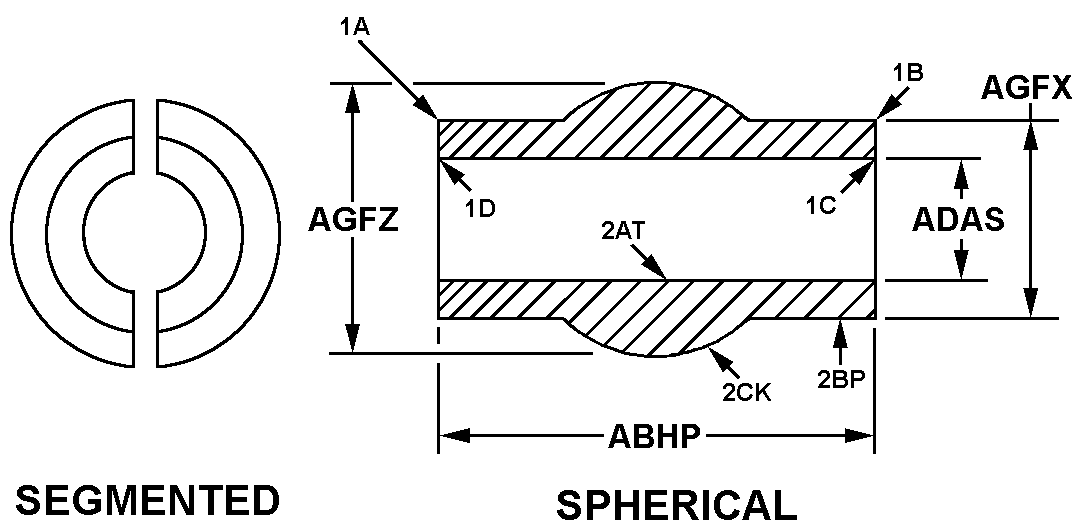

REFERENCE DRAWINGS & PICTURES
SEGMENTED
Cross Reference | NSN 3120-00-075-5529
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS395ADX4UL | 16712 | SIEMENS DEMAG DELAVALTURBOMACHINERY, INC. |
| C61304 | 16712 | SIEMENS DEMAG DELAVALTURBOMACHINERY, INC. |
| MS4267A | 16712 | SIEMENS DEMAG DELAVALTURBOMACHINERY, INC. |
Technical Data | NSN 3120-00-075-5529
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SEGMENTED |
| OVERALL LENGTH | 5.0000 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 5.0000 INCHES MINIMUM AND 5.0010 INCHES MAXIMUM |
| EXTENSION OUTSIDE DIAMETER | 5.9670 INCHES MINIMUM AND 5.9680 INCHES MAXIMUM |
| SPHERICAL BODY DIAMETER | 7.7490 INCHES MINIMUM AND 7.7500 INCHES MAXIMUM |
