NSN 3120-00-074-2081
Part Details | SLEEVE BEARING
3120-00-074-2081 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Alternate Parts: 7237730P2, 7237730P002, 3120-00-074-2081, 00-074-2081, 3120000742081, 000742081
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUL 29, 1967 | 00-074-2081 | 13205 ( BEARING, SLEEVE ) |
REFERENCE DRAWINGS & PICTURES

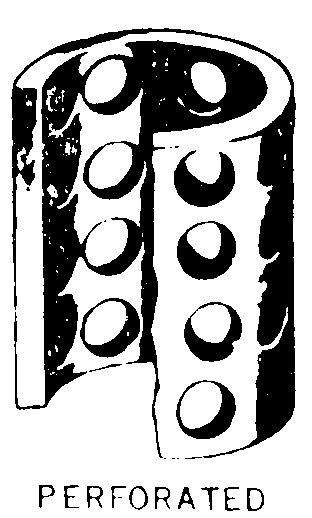

PERFORATED
SOLID, EXTERNAL FLANGE ONE END
Cross Reference | NSN 3120-00-074-2081
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7237730P2 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
| 7237730P002 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
Technical Data | NSN 3120-00-074-2081
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLID, EXTERNAL FLANGE ONE END |
| OVERALL LENGTH | 1.1700 INCHES MINIMUM AND 1.1900 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 1.2570 INCHES MINIMUM AND 1.2580 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 1.0040 INCHES MINIMUM AND 1.0050 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 1.4800 INCHES MINIMUM AND 1.5200 INCHES MAXIMUM |
| FLANGE WIDTH | 0.1240 INCHES MINIMUM AND 0.1260 INCHES MAXIMUM |
| LUBRICANT ACCOMMODATION STYLE | PERFORATED |
| SPECIAL FEATURES | PERFORATIONS GRAPHITE FILLED |
