NSN 3120-00-074-1911
Part Details | THRUST WASHER BEARING
3120-00-074-1911 An item of any peripheral shape usually having one flat or spherical surface and a centrally located hole. It is designed for applications involving moving (kinetic) loads. Except for items fabricated from bearing quality synthetic (plastic) or composed of multilayer material, one bearing surface must either have a specific surface finish designation of 32 microinch (0.8 micrometre) or less, arithmetical average (aa) (arithmetic mean deviation) or one of the following conditions: be lapped or ground; have visible or detectable means of lubrication; grooves, indentations; or self-lubrication. The thickness must not exceed 25 percent of the outside diameter of the shortest distance between peripheral flats (when thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance). Excludes straight, tubular (without flange) items having a bearing surface(s) parallel to the axis of the bore only. See also WASHER, FLAT and SPACER, SLEEVE.
Alternate Parts: 5132504, 3120000741911, 2815000741911, B5132504, 5132504, K5132504, 5132504, PC5132504, 33112, 3120-00-074-1911, 00-074-1911, 3120000741911, 000741911
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-074-1911 | 13211 ( BEARING, WASHER, THRUST ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR

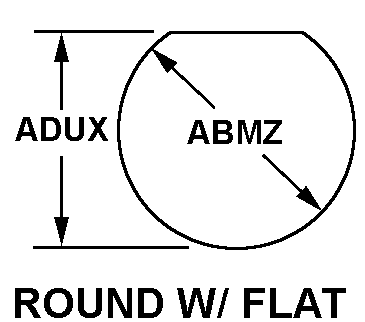

ROUND W/FLAT
ROUND
Cross Reference | NSN 3120-00-074-1911
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5132504 | F0742 | DELPHI FRANCE SAS |
| 3120000741911 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 2815000741911 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| B5132504 | 7U177 | FEDERAL-MOGUL CORPORATIONDBA FEDERAL-MOGUL DIV FP DIESEL |
| 5132504 | 24617 | GENERAL MOTORS CORP |
| K5132504 | 18954 | KORODY-COLYER CORPA CR INDUSTRIES CO |
| 5132504 | 72582 | MTU AMERICA INC. |
| PC5132504 | C7432 | POWER COMPONENTS (DEUTSCHLAND) GMBH |
| 33112 | 13841 | TIFFIN PARTS, L.L.C.DIV SUBSIDIARY OF PETTIBONE CORP. |
Technical Data | NSN 3120-00-074-1911
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| OUTSIDE DIAMETER | 3.2100 INCHES MINIMUM AND 3.2200 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | RECTANGULAR |
| OVERALL THICKNESS | 0.1180 INCHES MINIMUM AND 0.1200 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | ROUND W/FLAT |
| DIAMETER | 2.2000 INCHES MINIMUM AND 2.2200 INCHES MAXIMUM |
| CENTER HOLE WIDTH | 2.0650 INCHES MINIMUM AND 2.0850 INCHES MAXIMUM |
| SPECIAL FEATURES | FIRST INSIDE CORNER CHAMFER LENGTH 0.0469 IN. NOMINAL,FIRST INSIDE CORNER ANGLE 45.0 DEGREES |
