NSN 3120-00-070-1741
Part Details | ROD END PLAIN BEARING
3120-00-070-1741 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Alternate Parts: 215243041, 215-24304-1, 215243041, 215-24304-1, 3120-00-070-1741, 00-070-1741, 3120000701741, 000701741
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUL 13, 1967 | 00-070-1741 | 13209 ( BEARING, PLAIN, ROD END ) |
REFERENCE DRAWINGS & PICTURES

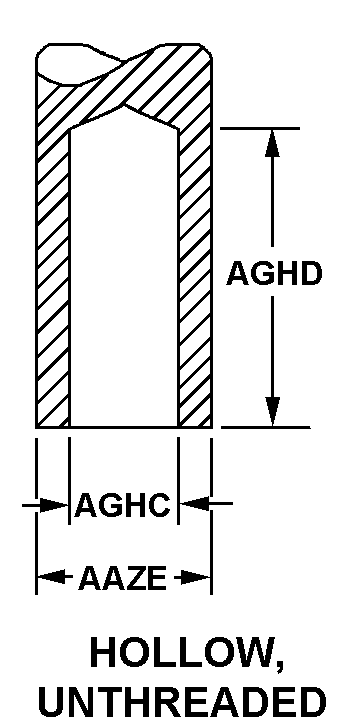

HOLLOW, UNTHREADED
BALL TYPE
Cross Reference | NSN 3120-00-070-1741
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 215-24304-1 | 61174 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN AEROSPACE |
| 215-24304-1 | 80378 | TRIUMPH AEROSTRUCTURES, LLCDBA TRIUMPH AEROSTRUCTURES - VOUGHT |
Technical Data | NSN 3120-00-070-1741
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BALL TYPE |
| OVERALL LENGTH | 3.5100 INCHES MINIMUM AND 3.5800 INCHES MAXIMUM |
| BORE DIAMETER | 0.9998 INCHES MINIMUM AND 1.0003 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.4600 INCHES MINIMUM AND 1.5200 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.5000 INCHES MINIMUM AND 0.5100 INCHES MAXIMUM |
| SHANK STYLE | HOLLOW, UNTHREADED |
| SHANK INSIDE DIAMETER | 0.6875 INCHES NOMINAL |
| SHANK HOLE LENGTH | 1.2200 INCHES MINIMUM AND 1.2800 INCHES MAXIMUM |
