NSN 3120-00-069-7794
Part Details | LINEAR-ROTARY MOTION ROLLER
3120-00-069-7794 A cylindrical body having a centrally located hole to accommodate a pin or shaft for attachment to a push rod guide, yoke, rocker arm, turntable, or rail. The item provides a rolling contact with the face of a valve stem, or the lobes of a cam ring or camshaft on engines, fuel injection pumps, latches, turntables, parallel bearing surfaces requiring a roller support, and the like. Excludes BEARING, ROLLER, CYLINDRICAL; ROLLER, ELECTRICAL SWITCH; and friction bearings. See also CAM FOLLOWER, NEEDLE BEARING.
Alternate Parts: 3F11335101, 3F11335-101, 3120-00-069-7794, 00-069-7794, 3120000697794, 000697794
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-069-7794 | 28215 ( ROLLER, LINEAR-ROTARY MOTION ) |
REFERENCE DRAWINGS & PICTURES

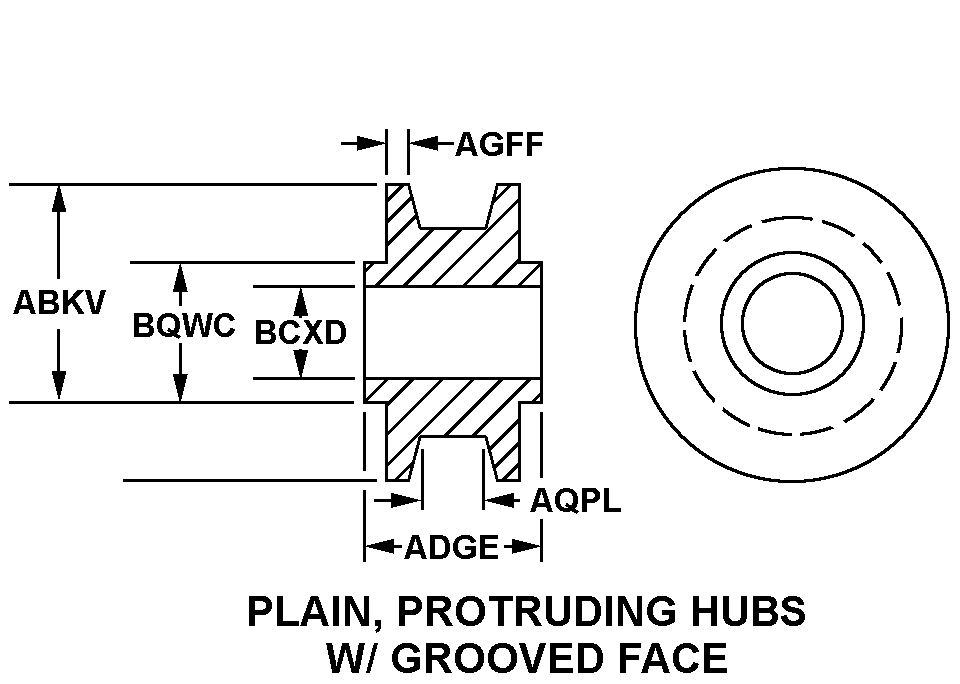

PLAIN, PROTRUDING HUBS W/GROOVED FACE
Cross Reference | NSN 3120-00-069-7794
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3F11335-101 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 3120-00-069-7794
| Characteristic | Specifications |
|---|---|
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| STYLE DESIGNATOR | PLAIN, PROTRUDING HUBS W/GROOVED FACE |
| OUTSIDE DIAMETER | 0.880 INCHES NOMINAL |
| BORE LENGTH | 0.620 INCHES NOMINAL |
| FLANGE WIDTH | 0.0600 INCHES NOMINAL |
| FACE WIDTH | 0.3400 INCHES NOMINAL |
| BORE INSIDE DIAMETER | 0.1930 INCHES MINIMUM AND 0.1990 INCHES MAXIMUM |
