NSN 3120-00-068-4049
Part Details | SLEEVE BEARING
3120-00-068-4049 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Alternate Parts: 6L1FF, 102710102, 102710-102, 3090800000, 309-0800-000, 309080000, 309-0800-00, 3090800000, 309-0800-000, 6L1FF, 100490163, 10049016-3, 10049016, 125G3027, 3120-00-068-4049, 00-068-4049, 3120000684049, 000684049
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-068-4049 | 13205 ( BEARING, SLEEVE ) |

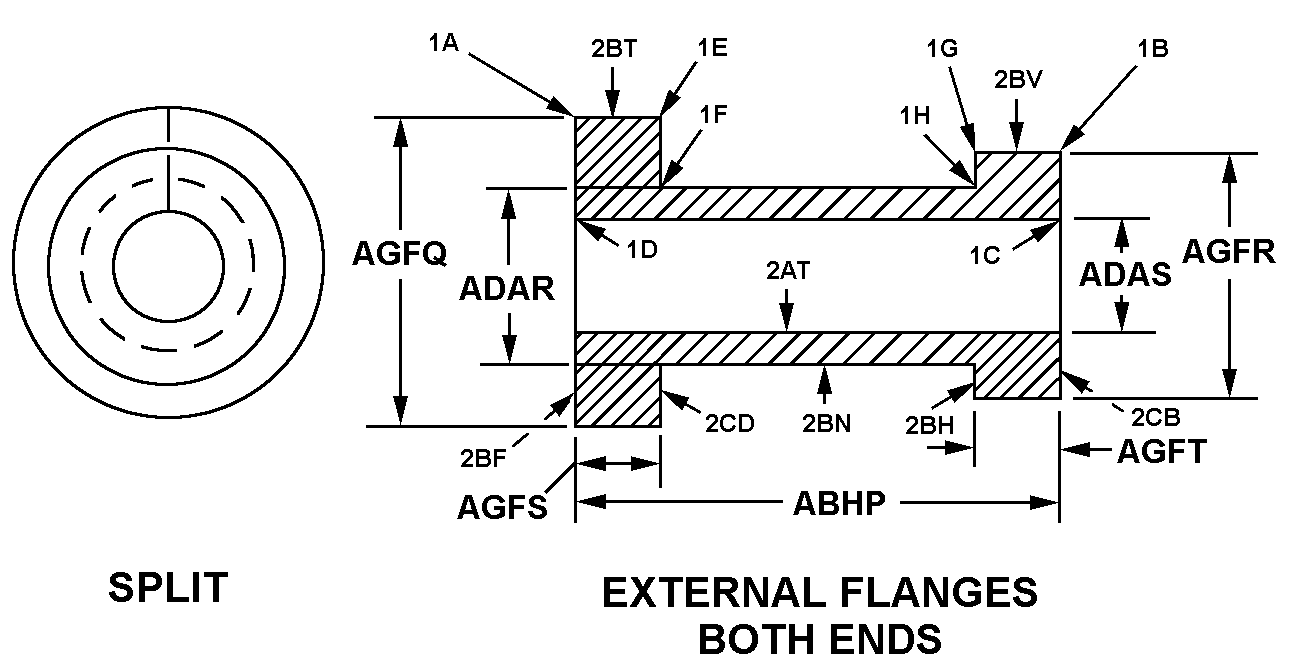

REFERENCE DRAWINGS & PICTURES
SPLIT, EXTERNAL FLANGES BOTH ENDS
Cross Reference | NSN 3120-00-068-4049
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6L1FF | 85371 | APPLIED INDUSTRIAL TECHNOLOGIES --PA LLC |
| 102710-102 | 91417 | HARRIS CORPORATIONDBA GOVERNMENT COMMUNICATIONS |
| 309-0800-000 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 309-0800-00 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 309-0800-000 | 95105 | ROCKWELL COLLINS, INC.DIV GOVERNMENT SYSTEMS - DALLAS |
| 6L1FF | 96881 | THOMSON INDUSTRIES INC |
| 10049016-3 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 10049016 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 125G3027 | 67177 | ZENITH ELECTRONICS CORPORATION |
Technical Data | NSN 3120-00-068-4049
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPLIT, EXTERNAL FLANGES BOTH ENDS |
| OVERALL LENGTH | 0.1340 INCHES MINIMUM AND 0.1550 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.4375 INCHES MINIMUM AND 0.4385 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.3750 INCHES MINIMUM AND 0.3780 INCHES MAXIMUM |
| LEFT FLANGE OUTSIDE DIAMETER | 0.5460 INCHES MINIMUM AND 0.5780 INCHES MAXIMUM |
| RIGHT FLANGE OUTSIDE DIAMETER | 0.4530 INCHES MINIMUM AND 0.4840 INCHES MAXIMUM |
| LEFT FLANGE WIDTH | 0.0250 INCHES MINIMUM AND 0.0300 INCHES MAXIMUM |
| RIGHT FLANGE WIDTH | 0.0250 INCHES MINIMUM AND 0.0300 INCHES MAXIMUM |
| SPECIAL FEATURES | ONE DIAGONAL SPLIT FOR COMPENSATION GAP |
