NSN 3120-00-065-6039
Part Details | SLEEVE BUSHING
3120-00-065-6039 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.
Alternate Parts: 26839, 6003114, 6003-114, 3120-00-065-6039, 00-065-6039, 3120000656039, 000656039
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-065-6039 | 13206 ( BUSHING, SLEEVE ) |
REFERENCE DRAWINGS & PICTURES

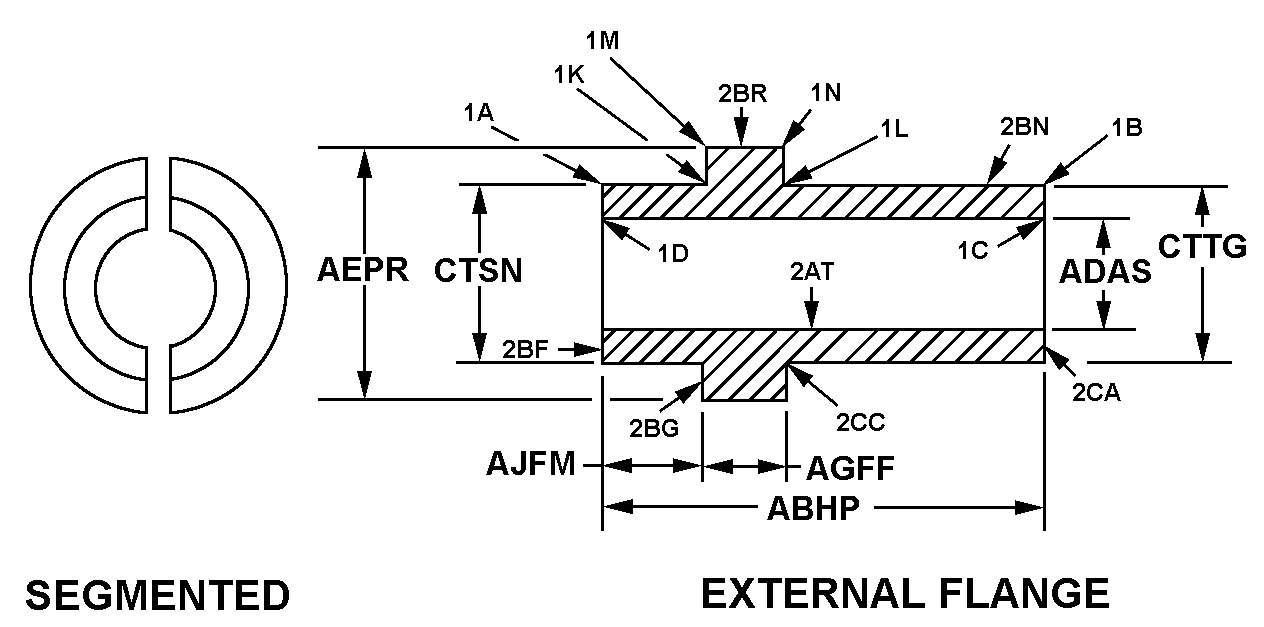

SEGMENTED, EXTERNAL FLANGE
Cross Reference | NSN 3120-00-065-6039
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26839 | 26344 | NEW HAVEN MFG CORP |
| 6003-114 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 3120-00-065-6039
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SEGMENTED, EXTERNAL FLANGE |
| OVERALL LENGTH | 1.4140 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.6250 INCHES MINIMUM AND 0.6252 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.5000 INCHES MINIMUM AND 0.5002 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 0.9630 INCHES MINIMUM AND 0.9680 INCHES MAXIMUM |
| FLANGE WIDTH | 0.3450 INCHES MINIMUM AND 0.3500 INCHES MAXIMUM |
