NSN 3120-00-063-2930
Part Details | SLEEVE BEARING
3120-00-063-2930 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Alternate Parts: 128CM122221, 128CM12222-1, 128CM122221, 128CM12222-1, 128CM122221, 128CM12222-1, 3120-00-063-2930, 00-063-2930, 3120000632930, 000632930
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-063-2930 | 13205 ( BEARING, SLEEVE ) |
REFERENCE DRAWINGS & PICTURES

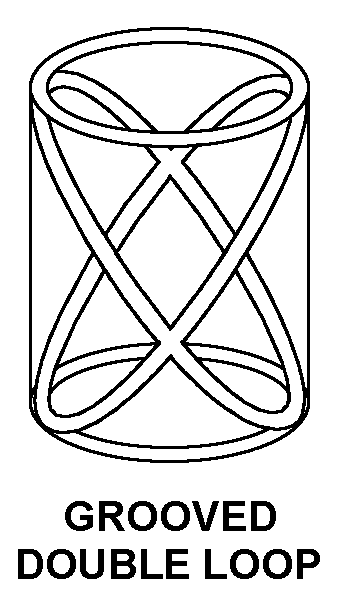

GROOVED DOUBLE LOOP
SOLID, EXTERNAL FLANGE ONE END
Cross Reference | NSN 3120-00-063-2930
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 128CM12222-1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
| 128CM12222-1 | 61174 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN AEROSPACE |
| 128CM12222-1 | 26838 | VAHL INC |
Technical Data | NSN 3120-00-063-2930
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLID, EXTERNAL FLANGE ONE END |
| OVERALL LENGTH | 1.0310 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.6270 INCHES MINIMUM AND 1.6280 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 1.3630 INCHES MINIMUM AND 1.3650 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 2.0000 INCHES NOMINAL |
| FLANGE WIDTH | 0.0910 INCHES MINIMUM AND 0.0930 INCHES MAXIMUM |
| LUBRICANT ACCOMMODATION STYLE | GROOVED DOUBLE LOOP |
