NSN 3120-00-056-9585
Part Details | SLEEVE BEARING
3120-00-056-9585 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Alternate Parts: 169559H1, 169559, 169559H1, 3120-00-056-9585, 00-056-9585, 3120000569585, 000569585
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-056-9585 | 13205 ( BEARING, SLEEVE ) |
REFERENCE DRAWINGS & PICTURES

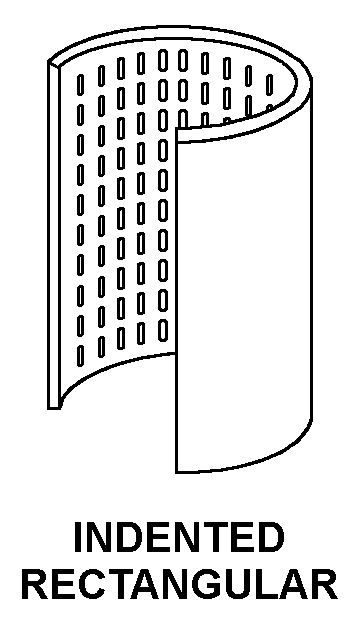

INDENTED RECTANGULAR
SOLID, PLAIN, NO OUTSIDE FLANGES
Cross Reference | NSN 3120-00-056-9585
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 169559H1 | 0SAT8 | KOMATSU AMERICA CORP. |
| 169559 | 29510 | KOMATSU AMERICAN INTL CO |
| 169559H1 | 29510 | KOMATSU AMERICAN INTL CO |
Technical Data | NSN 3120-00-056-9585
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLID, PLAIN, NO OUTSIDE FLANGES |
| OVERALL LENGTH | 1.3650 INCHES MINIMUM AND 1.3850 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 3.6870 INCHES MINIMUM AND 3.6880 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 3.5034 INCHES MINIMUM AND 3.5036 INCHES MAXIMUM |
| LUBRICATION MATERIAL | LUBRICATING OIL |
| LUBRICANT ACCOMMODATION STYLE | INDENTED RECTANGULAR |
| SPECIAL FEATURES | LUBRICANT IMPREGNATED |
