NSN 3110-00-159-1325
Part Details | OUTER BEARING RING
3110-00-159-1325 The outer component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Alternate Parts: 57204800, 5720-4800, 3110-00-159-1325, 00-159-1325, 3110001591325, 001591325
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-159-1325 | 00029 ( RING, BEARING, OUTER ) |
REFERENCE DRAWINGS & PICTURES

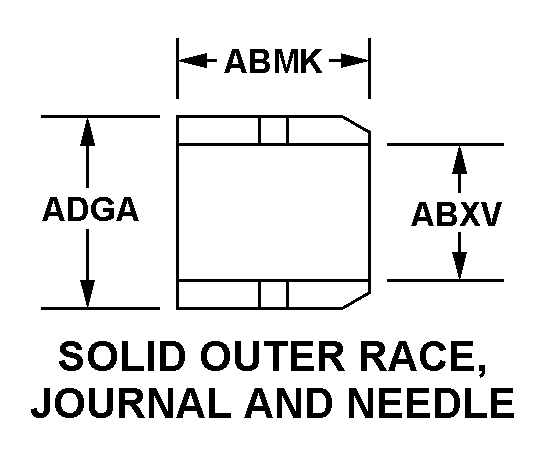

SOLID OUTER RACE, JOURNAL AND NEEDLE
Cross Reference | NSN 3110-00-159-1325
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5720-4800 | 44114 | BAE SYSTEMS LAND & ARMAMENTS L.P. |
Technical Data | NSN 3110-00-159-1325
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLID OUTER RACE, JOURNAL AND NEEDLE |
| OVERALL WIDTH | 1.3750 INCHES NOMINAL |
| BORE DIAMETER | 1.9985 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.3765 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| SURFACE FINISH | GROUND |
