NSN 3040-00-491-3215
Part Details | HUB CLAMP
3040-00-491-3215 An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP.
Alternate Parts: 9M8867, 3040-00-491-3215, 00-491-3215, 3040004913215, 004913215
Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
---|---|---|---|
30 | SEP 21, 1970 | 00-491-3215 | 27781 ( CLAMP, HUB ) |
REFERENCE DRAWINGS & PICTURES
UNTHREADED

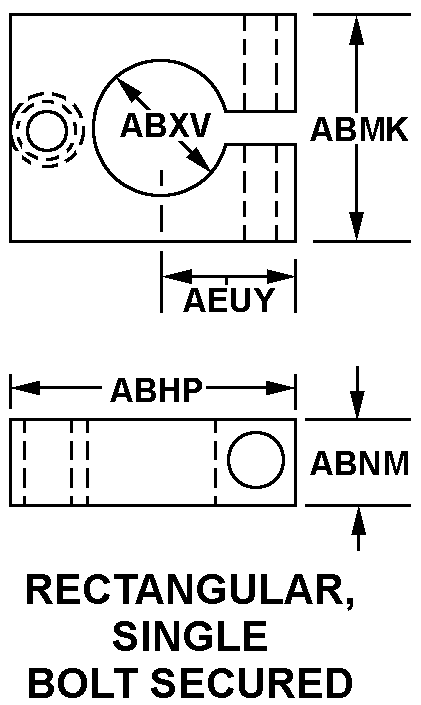

RECTANGULAR, SINGLE BOLT SECURED

Cross Reference | NSN 3040-00-491-3215
Part Number | Cage Code | Manufacturer |
---|---|---|
9M8867 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
Technical Data | NSN 3040-00-491-3215
Characteristic | Specifications |
---|---|
MATERIAL | STEEL |
STYLE DESIGNATOR | RECTANGULAR, SINGLE BOLT SECURED |
THICKNESS | 1.000 INCHES NOMINAL |
OVERALL LENGTH | 3.000 INCHES NOMINAL |
OVERALL WIDTH | 1.625 INCHES NOMINAL |
BORE DIAMETER | 1.3440 INCHES MINIMUM AND 1.3855 INCHES MAXIMUM |
CLAMP SECURING HOLE STYLE | UNTHREADED |
PLAIN HOLE DIAMETER | 0.4060 INCHES NOMINAL |
SPECIAL FEATURES | PARALLEL HOLE IN NON-CLAMPING END 0.406 IN. DIA |
