NSN 3040-00-465-9209
Part Details | HUB CLAMP
3040-00-465-9209 An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP.
Alternate Parts: 11187, 11-187, 11187, 11-187, 11187, 11-187, 10051376, 3040-00-465-9209, 00-465-9209, 3040004659209, 004659209
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 19, 1970 | 00-465-9209 | 27781 ( CLAMP, HUB ) |
REFERENCE DRAWINGS & PICTURES
THREADED

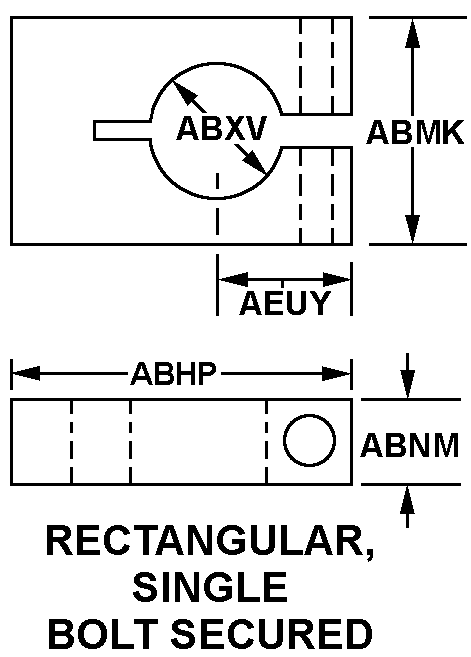

RECTANGULAR, SINGLE BOLT SECURED
Cross Reference | NSN 3040-00-465-9209
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11-187 | 07CR8 | ADVANCED LOGIC RESOURCES INCDBA ALR |
| 11-187 | 00607 | GAP INSTRUMENT CORP |
| 11-187 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
| 10051376 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 3040-00-465-9209
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225 TO 6, ALLOY 2024, T4 FED SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | RECTANGULAR, SINGLE BOLT SECURED |
| THICKNESS | 0.1875 INCHES NOMINAL |
| OVERALL LENGTH | 0.970 INCHES NOMINAL |
| OVERALL WIDTH | 0.375 INCHES NOMINAL |
| BORE DIAMETER | 0.1870 INCHES NOMINAL |
| DISTANCE FROM BORE CENTERLINE TO END | 0.510 INCHES NOMINAL |
| CLAMP SECURING HOLE STYLE | THREADED |
| PLAIN HOLE DIAMETER | 0.1250 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
