NSN 2995-01-147-8410
Part Details | LINEAR ACTUATING CYLINDER ASSEMBLY
2995-01-147-8410 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.
Alternate Parts: 9728M78P04, 9728M78P03, 3810050103, 3810050-103, 3810050101, 3810050-101, 2995-01-147-8410, 01-147-8410, 2995011478410, 011478410
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | FEB 23, 1983 | 01-147-8410 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |
REFERENCE DRAWINGS & PICTURES
BEARING TYPE
BEARING TYPE

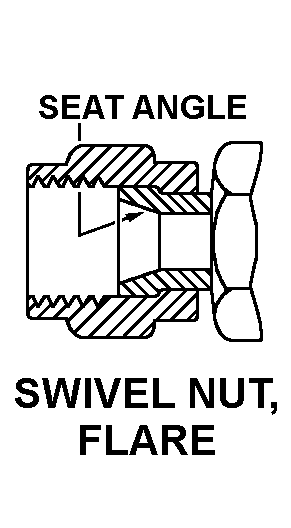

SWIVEL NUT, FLARE
Cross Reference | NSN 2995-01-147-8410
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9728M78P04 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| 9728M78P03 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| 3810050-103 | 92003 | PARKER HANNIFIN CORPORATIONDIV AEROSPACE GROUP HEADQUARTERS |
| 3810050-101 | 92003 | PARKER HANNIFIN CORPORATIONDIV AEROSPACE GROUP HEADQUARTERS |
Technical Data | NSN 2995-01-147-8410
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | DOUBLE ACTING SINGLE CYLINDER |
| EXTENDED LENGTH | 10.290 INCHES NOMINAL |
| COMPRESSED LENGTH | 8.280 INCHES NOMINAL |
| BODY MATERIAL | ALUMINUM ALLOY |
| INTEGRAL VALVE OPERATION METHOD | HYDRAULIC |
| FIRST PISTON ROD END STYLE | BEARING TYPE |
| FIRST END HOLE DIAMETER | B0.2495 INCHES AND C0.2500 INCHES |
| FIRST END OUTSIDE DIAMETER | 0.840 INCHES |
| FIRST END THICKNESS AT MOUNTING HOLES | 0.4345 INCHES |
| MOUNTING TYPE AND LOCATION | BEARING CYLINDER HEAD END |
| PORT LOCATION AND QUANTITY | 3 CYLINDER HEAD END |
| PORT STYLE | 5 SWIVEL NUT, FLARE |
| SPECIAL FEATURES | 3 PORTS ASSEMBLED 0.90 IN. C-TO-C RETRACT-TO-DRAIN AND 0.45 IN. ACROSS TO EXTEND PORT CEN; FLANGE SEAL AREA 0.50 IN. DIA W/32 MICROINCH FINISH; USED FOR INLET GUIDE VANE ACTUATION |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY SOURCE CONTROL NO. 9728M78 |
| END ITEM IDENTIFICATION | F101-GE-102 ENGINE,B1-B ACFT |
