NSN 2990-00-736-7683
Part Details | HAND CRANK
2990-00-736-7683 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.
Alternate Parts: 500872, 7367683, 2990-00-736-7683, 00-736-7683, 2990007367683, 007367683
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-736-7683 | 17533 ( CRANK, HAND ) |
REFERENCE DRAWINGS & PICTURES
EXTERNAL
ROUND WITH CAP
STRAIGHT

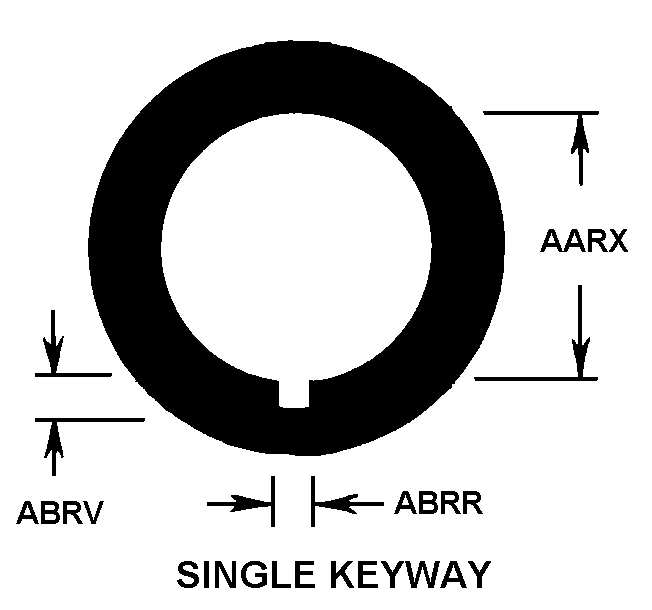

SINGLE KEYWAY
Cross Reference | NSN 2990-00-736-7683
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 500872 | 08683 | BROCKWAY MOTOR TRUCKSDIV OF MACK TRUCKS INC |
| 7367683 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2990-00-736-7683
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| ARM STYLE | STRAIGHT |
| CRANK THROW LENGTH | 10.000 INCHES NOMINAL |
| DRIVE END STYLE | EXTERNAL |
| DRIVE END OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| LENGTH FROM END TO ARM CENTER | 40.125 INCHES NOMINAL |
| DRIVE FACILITY STYLE | SINGLE KEYWAY |
| INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| KEYWAY WIDTH | 0.375 INCHES NOMINAL |
| HANDLE MOUNTING METHOD | INTEGRAL |
| HANDLE STYLE | ROUND WITH CAP |
| HANDLE LENGTH | 6.000 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
| FURNISHED ITEMS | PIN |
