NSN 2990-00-628-0418
Part Details | HAND CRANK
2990-00-628-0418 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.
Alternate Parts: 6280418, 2990-00-628-0418, 00-628-0418, 2990006280418, 006280418
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-628-0418 | 17533 ( CRANK, HAND ) |

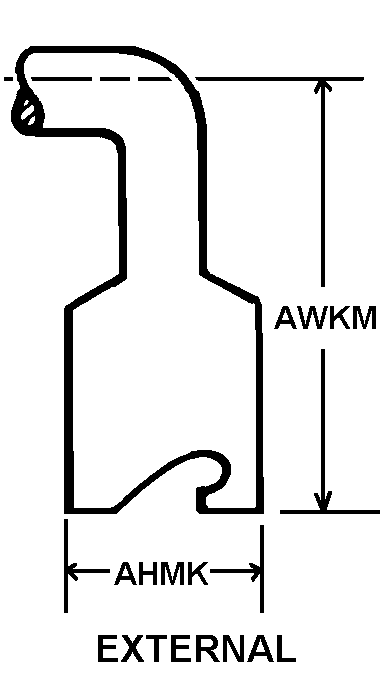

REFERENCE DRAWINGS & PICTURES
EXTERNAL
ROUND
STRAIGHT
ROUND
Cross Reference | NSN 2990-00-628-0418
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6280418 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2990-00-628-0418
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL ARM AND STEEL HANDLE |
| ARM STYLE | STRAIGHT |
| CRANK THROW LENGTH | 14.000 INCHES NOMINAL |
| DRIVE END STYLE | EXTERNAL |
| DRIVE END OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |
| LENGTH FROM END TO ARM CENTER | 22.062 INCHES NOMINAL |
| DRIVE FACILITY STYLE | ROUND |
| INSIDE DIAMETER | 0.750 INCHES NOMINAL |
| OVERALL DEPTH | 0.875 INCHES NOMINAL |
| HANDLE MOUNTING METHOD | INTEGRAL |
| HANDLE STYLE | ROUND |
| HANDLE LENGTH | 4.000 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | INCLUDED |
| RATCHET | NOT INCLUDED |
