NSN 2940-01-626-7729
Part Details | FLUID FILTER COVER
2940-01-626-7729 A rigid item of various shapes designed as a component of a fluid filter, acting as the cover and retaining the filter element in place. The item does not have an inlet or outlet connection. It is fastened onto the FILTER BODY, FLUID by means of clamps or bolts. For items with inlet and/or outlet connections, see HEAD, FLUID FILTER.
Alternate Parts: 13219E94861, 13219E9486-1, 2940-01-626-7729, 01-626-7729, 2940016267729, 016267729
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | MAR 20, 2014 | 01-626-7729 | 22569 ( COVER, FLUID FILTER ) |

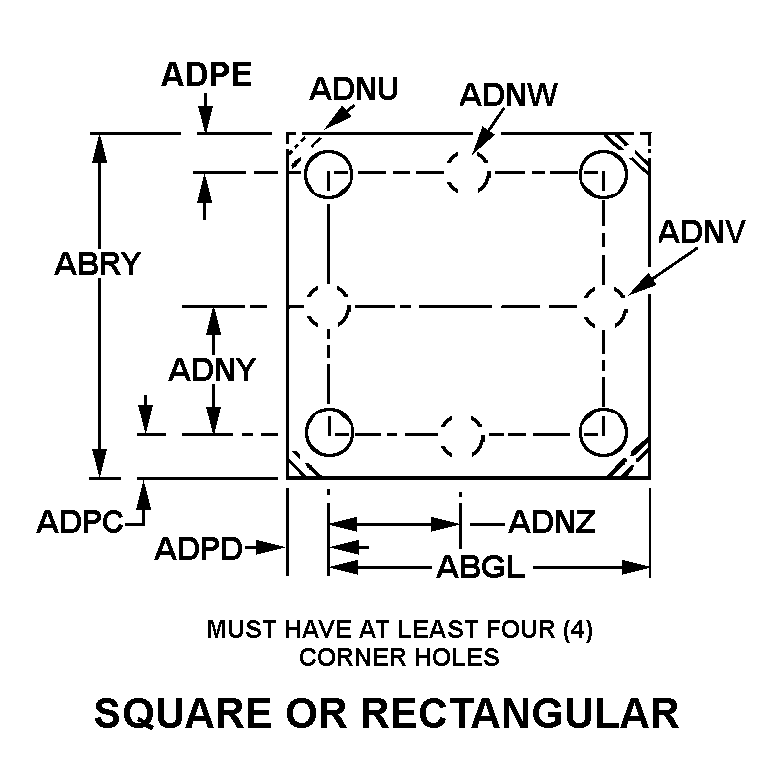

REFERENCE DRAWINGS & PICTURES
SQUARE OR RECTANGULAR
Cross Reference | NSN 2940-01-626-7729
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13219E9486-1 | 97403 | CECOM LR CENTER |
Technical Data | NSN 2940-01-626-7729
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| ATTACHMENT METHOD | BOLTED |
| PERIPHERAL SHAPE STYLE | SQUARE OR RECTANGULAR |
| WIDTH | 5.010 INCHES NOMINAL |
| LENGTH | 8.00 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 3.00 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG WIDTH | 2.270 INCHES NOMINAL |
| HOLE QUANTITY ALONG LENGTH | 6 |
| HOLE QUANTITY ALONG WIDTH | 1 |
| CORNER QUANTITY | 4 |
| SPECIAL FEATURES | 6 MOUNTING HOLES EVENLY SPACED EACH SIDE: ONE HOLE AT TOP |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | COVER,FRESH AIR |
